1407896
Official DistributorSKU
PHX1407896
MPN
FOC-V14-C1ZNI-S/SJFP
Weight
0.1 kg
Series FOC-V14

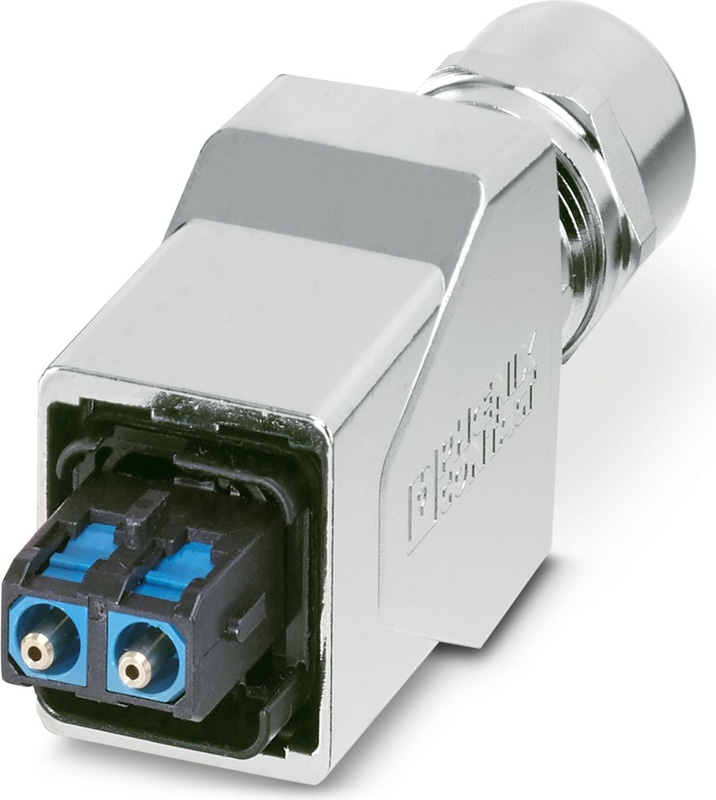

FOC-V14-C1ZNI-S/SJFP - FO connectors
FO connectors, degree of protection: IP65/IP67, number of positions: 2, MM, material: Metal, cable outlet: straight
- Push-pull ADVANCE connector
- Locking system to prevent inadvertent release
- Highest ESD and EMC resistance for reliable transmission
Technical Specifications
Notes
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.4 Connectors for outside environment (optical fibre) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
Product properties
| Type | SC-RJ |
| Number of Positions | 2 |
| Connection profile | SCRJ |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 3 |
Electrical properties
| Attenuation | ≤ 1.5 dB (in accordance with ISO/IEC 24702) |
| Transmission medium | FO |
| Transmission characteristics (category) | MM |
Dimensions
| Width | 22 mm |
| Height | 50 mm |
| Length | 80 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Ferrule material | Copper alloy |
| Housing Material | Metal |
| Housing surface material | nickel-plated |
Cable/line
| Cable Type | Plastic fiber |
| External Cable Diameter | 5.5 mm ... 10 mm |
| External Cable Diameter | 5.5 mm ... 10 mm |
| Resistance to Oil | yes |
| Flame resistance | yes |
FO cable
| Number of fibers | 2 |
| Fiber | 980/1000 µm |
| Fiber type | POF |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Characteristics
| Attenuation | ≤ 1.5 dB (in accordance with ISO/IEC 24702) |
Ambient conditions
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -10 °C ... 40 °C |
| Resistance to Oil | yes |
Standards and Regulations
| Flame resistance | yes |
| Resistance to Oil | yes |
