1407917
Official DistributorSKU
PHX1407917
MPN
FOC-V14-C1S-S/SJFG
Weight
0.022 kg
Series FOC-V14

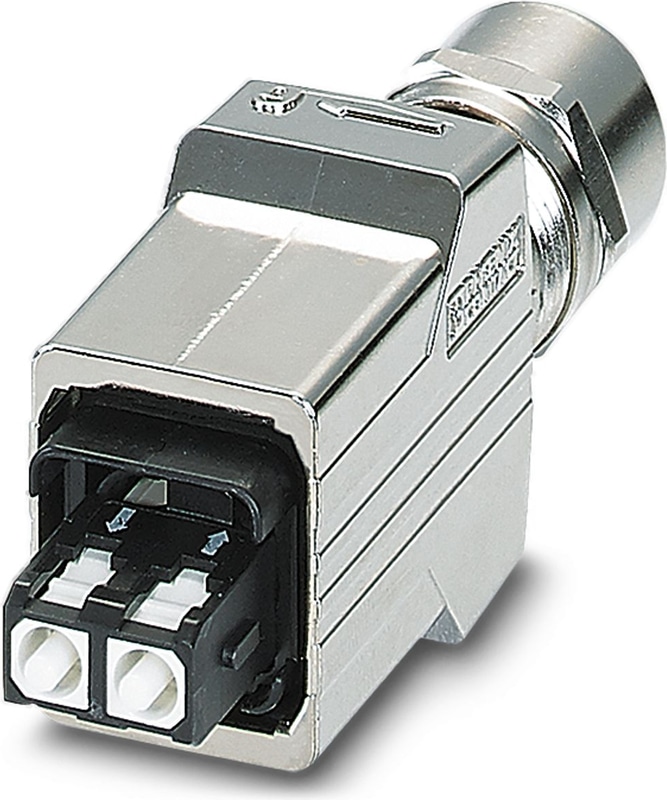

FOC-V14-C1S-S/SJFG - SC-RJ connectors
SC-RJ connectors, degree of protection: IP65/IP67, number of positions: 2, material: Stainless steel, connection method: Push-pull, cable outlet: straight
Technical Specifications
Notes
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 3.01, Order No. 2252 |
Product properties
| Type | Version 14 |
| Number of Positions | 2 |
| Shielded | no |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | I |
| Degree of pollution | 2 |
Electrical properties
| Attenuation | ≤ 1.5 dB (in accordance with ISO/IEC 24702) |
Connection data
| Connection Method | Push-Pull |
Dimensions
| Width | 22 mm |
| Height | 34 mm |
| Length | 80 mm |
Mechanical characteristics
| Ferrule diameter | 2.50 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing Material | Stainless steel |
Cable/line
| Cable Type | Fiber optics |
| External Cable Diameter | ≤ 10.00 mm (of 5 mm) |
| Individual wire diameter | 2.2 mm |
| Resistance to Oil | yes |
| Flame resistance | yes |
Characteristics
| Attenuation | ≤ 1.5 dB (in accordance with ISO/IEC 24702) |
Ambient conditions
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Ambient temperature (assembly) | 0 °C ... 50 °C |
| Resistance to Oil | yes |
Standards and Regulations
| Flame resistance | yes |
| Resistance to Oil | yes |
| Standards/specifications | IEC 61076 |
Accessories
Why Proax for Phoenix Contact 1407917?
Proax is an authorized distributor of Phoenix Contact 1407917 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
