1212598
Official DistributorSKU
PHX1212598
MPN
SF-VT VDE
Weight
0.031 kg
This product is Not Cancellable/Not Returnable

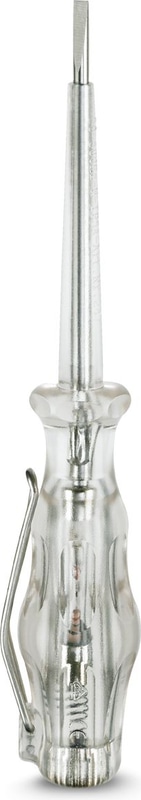

SF-VT VDE - Voltage tester
Voltage tester, single-position, for 150 - 250 V, conforms to DIN 57680/6 and VDE 0680/6, can also be used as an actuation tool for spring-cage terminal blocks, size: 0.5 x 3.0 x 70 mm, VDE insulated, with non-slip grip
- Can be used as an actuation tool for spring-cage terminal blocks
- With non-slip grip
- VDE tested
- Bladed screwdriver with test function
Technical Specifications
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
Product properties
| Type | Bladed |
| Phase-sequence indicator | no |
| Measuring point lighting | no |
| Phase display | no |
Electrical properties
| Measuring category | none |
| Power Supply | Self supply |
Input data
| Input Voltage Range AC | 150 V AC ... 250 V AC |
Connection data
| Output | Bladed |
Dimensions
| Blade width | 3 mm |
| Blade height | 65 mm |
| Length | 142 mm |
| Diameter | 23 mm |
| Blade thickness | 0.5 mm |
Material specifications
| Material | High-grade steel / plastic |
Standards and Regulations
| Tests | ISO 57680/6 VDE 0680/6 |
Why Proax for Phoenix Contact 1212598?
Proax is an authorized distributor of Phoenix Contact 1212598 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
