1014106
Official DistributorSKU
PHX1014106
MPN
KMK UV (25X6)
Weight
0.001 kg

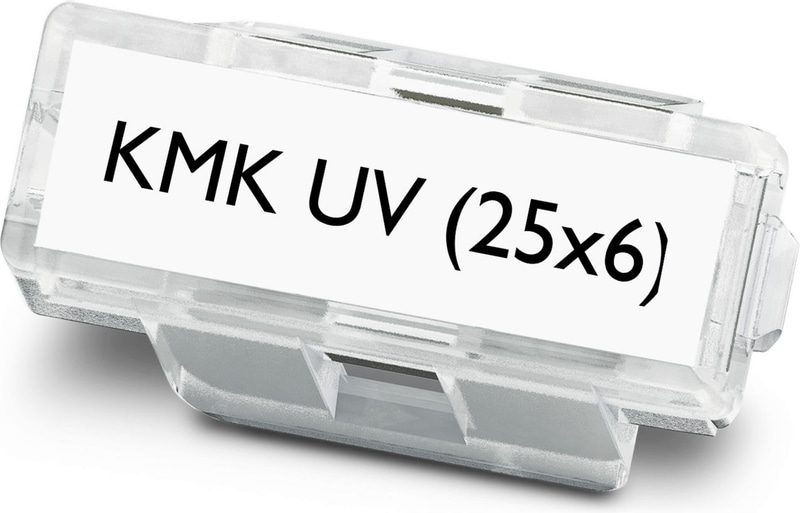

KMK UV (25X6) - Cable marker carrier
- Plastic cable markers for insert labels, for assembly with cable binders
- Plastic cable markers for marking and bundling conductors and cables indoors
- The markers have eyelets and are attached with cable binders
- The marked insert label is protected from dirt by the sealing cap
Technical Specifications
Product properties
| Area of application | Outdoors |
| Type | Mounting set |
Dimensions
| Width | 6 mm |
| Height | 25 mm |
| Length | 25 mm |
External dimensions
| Outside diameter | 6 mm ... 50 mm |
Material specifications
| Color | transparent |
| Material | PA |
| Flammability rating according to UL 94 | HB |
| Components | halogen-free |
| UV Exposure and Water Immersion according to UL 746C | f1 |
Cable/line
| External Cable Diameter | ≥ 6.00 mm |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 30000 h |
Temperature resistance
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 100 °C (121 °C) | Test passed |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2] | Test passed |
| Acetone (99 %) [CAS No. 67-64-1] | Test passed |
| Diesel [CAS No. 68476-34-6] | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
| Test duration | 96 h |
High pressure test
| Specification | IEC 60529:2001-02 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Ambient temperature (assembly) | -40 °C |
| Resistance to UV radiation | yes |
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | Assembly with cable ties |
Accessories
WT-UV HF 3,6X140 BK - Cable binders for quick and permanent fastening, UV-resistant and weatherproof (ISO 4892_QUV-B 600 h)
WT-UV HF 3,6X200 BK - Cable binders for quick and permanent fastening, UV-resistant and weatherproof (ISO 4892_QUV-B 600 h)
WT-UV HF 4,5X200 BK - Cable binders for quick and permanent fastening, UV-resistant and weatherproof (ISO 4892_QUV-B 600 h)
WT-UV HF 4,5X290 BK - Cable binders for quick and permanent fastening, UV-resistant and weatherproof (ISO 4892_QUV-B 600 h)
Why Proax for Phoenix Contact 1014106?
Proax is an authorized distributor of Phoenix Contact 1014106 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
