MRP31.0
Official DistributorBy ABB
SKU
ABB1SAJ251000R0001
MPN
1SAJ251000R0001
Weight
0.039 kg

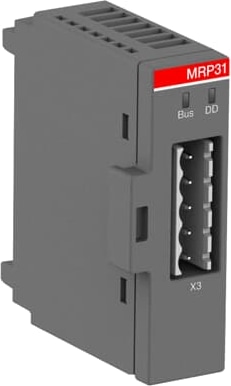

The MRP31.0 device allows the connection of the Universal Motor Controller UMC100.3 to a Modbus RTU network. It can be mounted directly onto the UMC100.3 or on the SMK3.0 mounting kit.
Technical Specifications
Supplier Information - AETAD009
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | AETAD009EXPU |
Supplier Information - BRABB008
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | BRABB008EXPU |
Supplier Information - CHSEC006
| Country or Territory of Origin | India |
| Lead Time | 0 day |
| Made to Order | No |
| Warranty Return | Product under warranty must be returned |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | CHSEC006EXPU |
Supplier Information - INABB003
| Country or Territory of Origin | India |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | INABB003EXPU |
| Warranty Return | Product under warranty must be returned |
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 54 mm |
| Product Net Height | 64 mm |
| Product Net Weight | 39 g |
Technical
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Mounting Type | UMC100.3/Single Mounting |
| Mounting on DIN Rail | With Single Mounting KIt |
| Power Loss | Approximately 0.6 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.61010-1 |
| Standards | CAN/CSA C22.2 No.61010-2-201 |
| Standards | IEC/EN 61131-2 |
| Standards | UL 61010-1 |
| Standards | UL 61010-2-201 |
| Suitable for | UMC100.3 |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.5 N·m |
| Tightening torque | Control Circuit 0.5 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 28-12 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 28-12 AWG |
Why Proax for ABB MRP31.0?
Proax is an authorized distributor of ABB MRP31.0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MRP310 |
| Pack Size | 1 |
