Official DistributorBy ABB
SKU
MPN
1SAJ231000R0001
Weight
0.073 kg

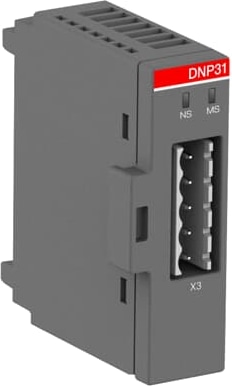

The DNP31.0 communication interface is an optional device for the UMC100.3 which enables the connection of the UMC100.3
to a DeviceNet system. It can be mounted directly onto the UMC100.3 or on the SMK3.0 mounting kit.
Technical Specifications
Dimensions
| Product Net Width | 22.5 mm |
| Product Net Depth / Length | 54 mm |
| Product Net Height | 64 mm |
| Product Net Weight | 39 g |
Technical
| Connecting Capacity | 1x 0.2-2.5 mm² |
| Mounting Type | UMC100.3/Single Mounting |
| Mounting on DIN Rail | With Single Mounting KIt |
| Power Loss | Approximately 1 W |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Recommended Screw Driver | Pozidriv 1 |
| Standards | CAN/CSA C22.2 No.142 |
| Standards | IEC/EN 61131-2 |
| Standards | UL 508 |
| Suitable for | SMK3.0 |
| Suitable for | UMC100.3 |
| Suitable for Product Class | Universal Motor Controllers |
| Suitable for Product Class | Universal Motor Controllers Accessories |
| Terminal Type | Screw Terminals |
| Tightening torque | Auxiliary Circuit 0.5 N·m |
| Tightening torque | Control Circuit 0.5 N·m |
| Wire Stripping Length | 7 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | Flexible with Ferrule 1x 28-12 AWG |
| Connecting Capacity UL/CSA | Rigid 1x 28-12 AWG |
Why Proax for ABB DNP31.0?
Proax is an authorized distributor of ABB DNP31.0 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DNP310 |
| Pack Size | 1 |
