5501685
Official DistributorBy Rittal
SKU
RIT5501685
Weight
8.5 kg

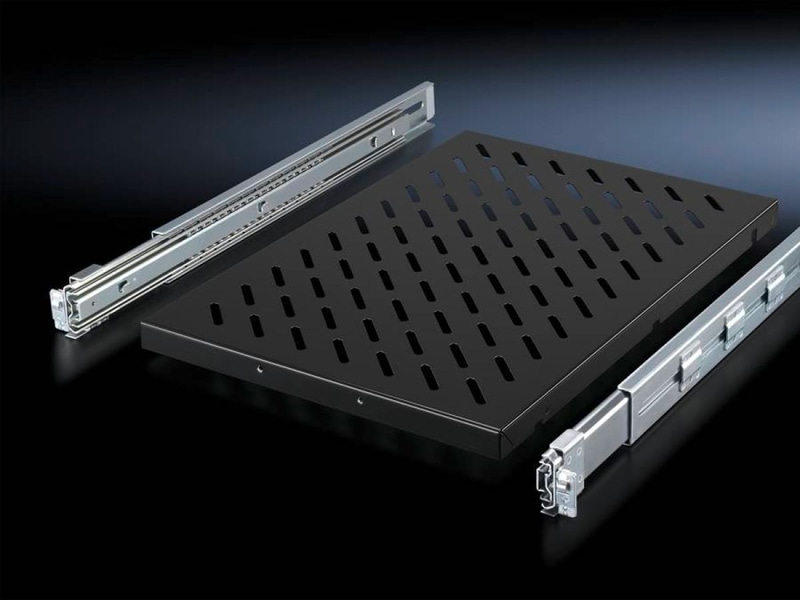

DK Component shelf, WHD: 419x1 Ux700 mm, 50 kg, distance between levels: 600-900 mm, Pull-out, RAL 9005
Supply includes
Component shelf, slotted
Telescopic slide with mounting kit
Assembly components
Component shelf, pull-out for VX IT, TS IT, TE, TX CableNet
Mounted between two 19" mounting levels.
Technical Specifications
Dimensions
| Width | 419 mm |
| Depth | 700 mm |
Suitable for
| Enclosure Type | VX IT |
Surface finish
| Base | Spray-finished |
| Telescopic slides/installation kit | zinc-plated |
| Benefits | Tool-free, time-saving one-person assembly from the front of the enclosure |
| Applications | Depth-variable to adapt to individual distances between levels |
| Material | Carbon steel |
| Color | RAL 9005 |
| Load Capacity | 50 kg |
| Distance between levels | 600 ‐ 900 mm |
| Weight/packaging unit | 8.5 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177679122 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 5501685?
Proax is an authorized distributor of Rittal 5501685 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
