5501655
Official DistributorBy Rittal
SKU
RIT5501655
Weight
6.56 kg

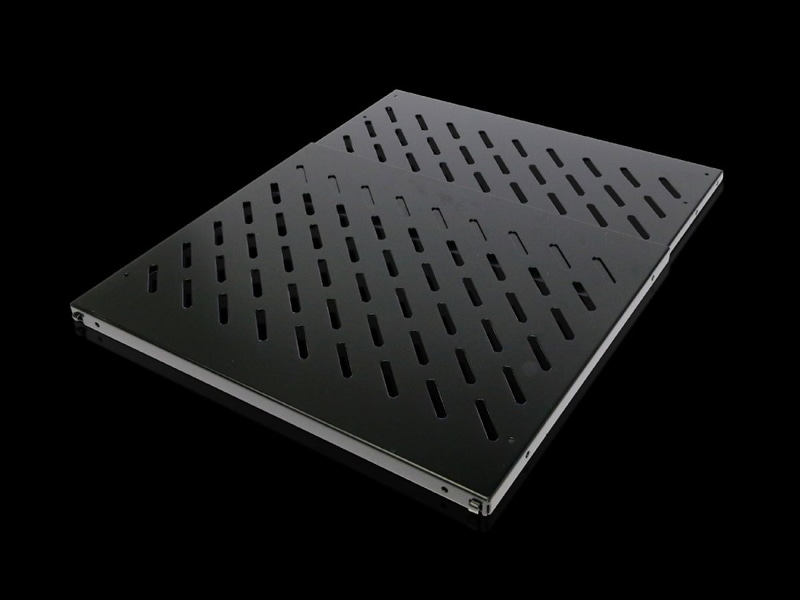

DK Component shelf, WxH: 484 mm x 0,5 U, 50 kg, distance between levels: 400-600 mm, depth-variable, RAL 9005
Supply includes
Assembly components
Component Shelf, Static Installation for VX IT, TS IT, TE, TX CableNet
For static installation between two 19" mounting levels.
Technical Specifications
Dimensions
| Width | 484 mm |
Suitable for
| Enclosure Type | VX IT |
| Benefits | Tool-free, time-saving one-person assembly |
| Applications | Depth-variable to adapt to individual distances between levels |
| Material | Carbon steel |
| Surface finish | Spray-finished |
| Color | RAL 9005 |
| Installation options | 482.6 mm (19") L-profile rails, front and rear |
| Load Capacity | 50 kg |
| Distance between levels | 400 ‐ 600 mm |
| Weight/packaging unit | 6.56 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177679092 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 5501655?
Proax is an authorized distributor of Rittal 5501655 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
