Official DistributorSKU
MPN
ETD-BL-1T-230-PT
Weight
0.072 kg
Series ETD-BL

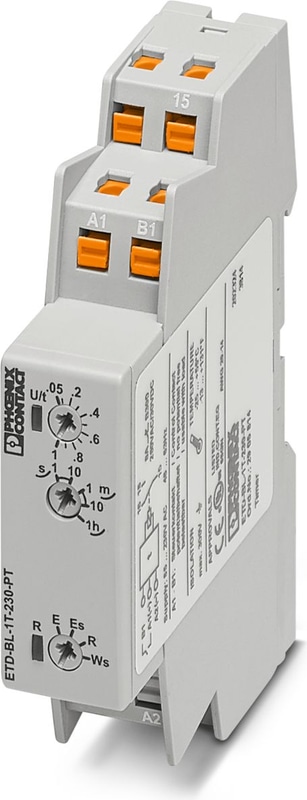

ETD-BL-1T-230-PT - Timer relay
Compact multi-functional timer relay with 4 functions and an adjustable time range (50 ms - 1 h), with Push-in connection, 1 changeover contact
Technical Specifications
Product properties
| Operating mode | 100% operating factor |
| Mechanical service life | 15x 10⁶ cycles |
Insulation characteristics
| Insulation | Basic insulation |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Service life electrical | 1x 105 cycles |
| Nominal frequency | 48 Hz ... 63 Hz |
| Test voltage relay winding/relay contact | 4 kV |
Input data
| Input voltage range | 24 V AC/DC ... 240 V AC/DC -15 % ... +10 % |
| Temperature coefficient, typical | ≤ 0.01 %/K |
| Recovery time | 100 ms |
| Function | E: With switch-on delay |
| Function | Rs: With release delay and control contact |
| Function | Es: With switch-on delay and control contact |
| Function | Ws: With single shot leading edge and control contact |
| Setting range time | 50 ms ... 1 h (5 time end ranges) |
| Basic accuracy | ± 1 % (of scale end value) |
| Setting accuracy | ≤ 5 % (of scale end value) |
| Repeat accuracy | ≤ 0.5 % ±5 ms |
Control
| Connection name | Non-floating, terminals A1-B1 |
| Control pulse length | ≥ 50 ms (DC) |
| Control pulse length | ≥ 100 ms (AC) |
Switching
| Contact switching type | 1 floating changeover contact |
| Maximum Switching Voltage | 250 V AC (in acc. with IEC 60664-1) |
| Interrupting rating (ohmic load) max. | 1250 VA (5 A / 250 V AC) |
| Output fuse | 5 A (fast-blow) |
Connection data
| Connection Method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Signaling
| Status display | Green LED (POWER) |
| Status display | Yellow LED (relay active) |
Dimensions
| Width | 17.5 mm |
| Height | 89.5 mm |
| Depth | 65.5 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of protection (Housing) | IP40 (Housing) |
| Degree of protection (Connection terminal blocks) | IP20 (Connection terminal blocks) |
| Ambient Temperature (Operation) | -25 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 15 % ... 85 % |
CE
| Certificate | CE-compliant |
UKCA
| Certificate | UKCA-compliant |
UL, USA/Canada
| Identification | UL 508 Listed |
EMC data
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Noise immunity | EN 61000-6-2 |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise emission | EN 61000-6-3 |
Standards and Regulations
| Standards/regulations | EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting Position | any |
