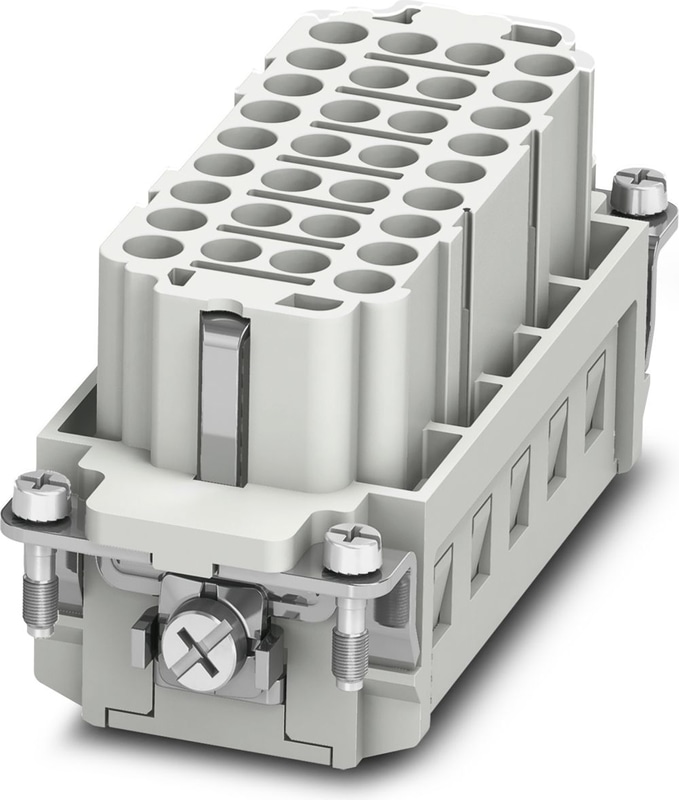

HC-BB32-I-CT-F - Contact insert

Contact insert, number of positions: 32+PE, size: B16, number of connections per position: 1, Socket, Crimp connection, 500 V, 16 A, 0.5 mm2 ... 4 mm2

For fast coding with plastic profile (Order No. 1410916, type CP-HC-S)

Technical Specifications

Notes

General	For HEAVYCON ADVANCE and HEAVYCON housing of B16 type, crimp contacts CK 2,5-ED (crimp contacts not included in the scope of supply).
General	Connectors may be operated only when there is no load/voltage.

Mounting

Assembly instructions

To ensure correct use, installation in housing with IP54 protection or better is required

Product properties

Series	HC-BB
Type	B16
Type	B32
Number of Positions	32
Connection profile	32+PE
Contact numbering	1 - 32
Number of connections per position	1
Contact material type	turned

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Dimensions

Width	34 mm
Height	32.5 mm
Length	84.5 mm
Drill hole distance, horizontal	77.5 mm
Drill hole distance, vertical	27 mm

Mechanical characteristics

Minimum housing height	72 mm
Contact diameter	2.5 mm

Connection technology

Connection technology	Crimp connection
Number of connections per position	1
Connection in acc. with standard	IEC / EN

Conductor connection

Conductor Cross Section	0.5 mm² ... 4 mm²
Connection cross section AWG	20 ... 12
Tightening torque	0.8 Nm ... 1.2 Nm (PE connection)
Tightening torque	0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing)
Stripping length of the individual wire	7.5 mm

Electrical properties

Rated voltage (III/3)	500 V
Rated surge voltage	6 kV
Rated current	16 A

Mechanical data

Insertion/withdrawal cycles

≥ 500

Material specifications

Flammability rating according to UL 94	V0
Contact Material	Copper alloy
Contact surface material	Ag (alternatively Au)
Contact carrier material	PC
Standards/regulations	PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Ambient conditions

Ambient Temperature (Operation)

-40 °C ... 125 °C (including heating up of contacts)

Testing

Standards/regulations

PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)

Accessories

1604997
HC-B-PES - PE screw, for contact inserts HC-B / HC-BB / HC-DD / HC-D40 / HC-D64
1644326
PE multiplier - HC-B-3PE
1676860
Coding socket for coding up to 16 connectors
1676857
HC-CST - Coding peg for coding up to 16 connectors
1685327
Strain relief clamp - HC-B-ZG
1685330
HC-B-ZS - Strain relief clamps contact inserts of series: B-, BB-, D 40, D 64, DD and HV, lateral cable exit
1676857
HC-CST - Coding peg for coding up to 16 connectors
1424336
HC-CIF-B16-HFWL-PL - DIN rail mounting frame, design: B16, for contact inserts, Top frame
1424338
HC-CIF-B06-24-BFAFL-PL - DIN rail mounting frame, design: B6 - B24, for contact inserts, Base frame
1660449
HC-B 24-ADP-B 16-GY - HEAVYCON adapter plate, type B24 on B16, for panel cutouts of type B24, gray
1586138
HC-B 16-ANDOCK - Docking frame for racks, for contact inserts of B16 type, with four M5 flat headed screws, rack balance x/y axis ±1.5 mm
1584693
CK2,5-ED-BB - Dummy socket for contact carrier with turned CK 2,5-ED... socket contacts. For HC-A../HC-BB.../HC-M... series contact inserts.
1072067
Contact removal tool - UNIFOX RT-CK 2.5
1212113
CRIMPFOX-TC 4 - Crimping pliers, for CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED... turned contacts, 4 marked die stations, unlockable pressure lock, lateral entry, incl. positioning tool
1410916
CP-HC-S - Coding profile, for contact inserts HC-BB... / HC-A10... / HC-A16...
1089092
UNIFOX MT-CK 1.6/2.5 - Assembly tool, for CK 1.6... crimp contacts for small conductor cross sections
1772722
HC-CB - Coding pin, prevents mismating of up to six connectors with an identical number of positions
1663640
CK2,5-ED-0,50BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1663653
CK2,5-ED-0,75BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 0.75 mm2, AWG 18
1663666
CK2,5-ED-1,00BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 0.75 mm2 ... 1 mm2, AWG 18
1663679
Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1663682
CK2,5-ED-2,50BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1663695
CK2,5-ED-3,00BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 3 mm2 ... 3 mm2, AWG 12
1663705
CK2,5-ED-4,00BU AG - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: silver-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
1585647
CK2,5-ED-0,37BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.14 mm2 ... 0.37 mm2, AWG 22 ... 26
1674859
CK2,5-ED-0,50BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.5 mm2 ... 0.5 mm2, AWG 20
1674833
CK2,5-ED-1,00BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 0.75 mm2 ... 1 mm2, AWG 18
1674820
CK2,5-ED-1,50BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 1.5 mm2 ... 1.5 mm2, AWG 16
1674862
CK2,5-ED-2,50BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 2.5 mm2 ... 2.5 mm2, AWG 14
1674846
CK2,5-ED-4,00BU AU - Crimp contact, contact diameter: 2.5 mm, turned, Socket, contact material: Copper alloy, contact surface: gold-plated, connection cross section: 4 mm2 ... 4 mm2, AWG 12
