1415157
Official DistributorSKU
PHX1415157

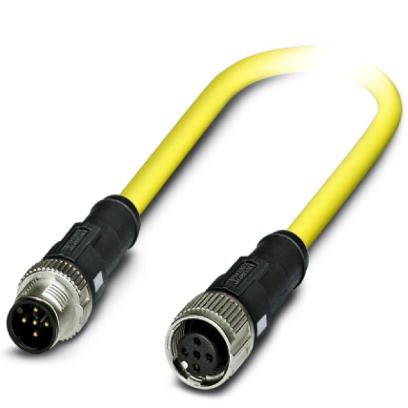

Sensor/actuator cable, 5-position, TPE, yellow, Plug straight M12 SPEEDCON, A-coded, on Socket straight M12 SPEEDCON, A-coded, cable length: 3 m
Technical Specifications
| Length of Cable | 3 m |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Degree of Protection | IP65, IP67, IP68 |
| Rated current at 40°C | 4 A |
| Rated voltage | 60 V |
| Number of Positions | 5 |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Protective circuit/component | Unwired |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Torque | 0.4 Nm (M12 connector) |
| Flammability rating according to UL 94 | HB |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
| Cable Type | TPE yellow 105 °C |
| Cable type (abbreviation) | 647 |
| UL AWM style | 20327 (105 °C / 300 V) |
| AWG Signal Line | 18 |
| Conductor structure signal line | 41x 0.16 mm |
| Core diameter including insulation | 1.8 mm |
| Thickness, insulation | 0.23 mm |
| Overall twist | 5 wires around filler to the core |
| External sheath, color | yellow |
| Outer sheath thickness | 0.89 mm |
| External cable diameter D | 6.6 mm ±0.25 mm |
| Cable weight | 39 kg/km |
| Outer sheath, material | TPE |
| Material conductor insulation | PVC |
| Nominal voltage, cable | 300 V |
| Flame resistance | According to FT1 |
| Resistance to Oil | OIL RES I according to UL 2256 |
| Other resistance | UV resistant (720 h) to UL 2256 |
| Ambient Temperature (Operation) | -30 °C ... 105 °C (cable, fixed installation) |
