1415122
Official DistributorSKU
PHX1415122
MPN
G-ESIS-M63-L68L-PEPDS-BL
Weight
0.169 kg
This product is Not Cancellable/Not Returnable

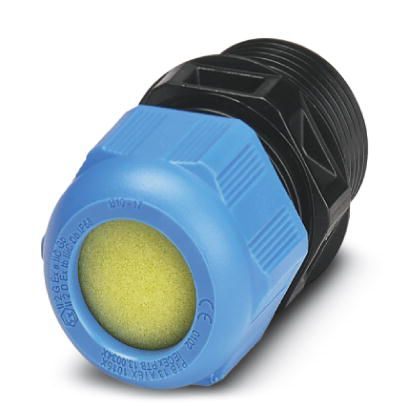

G-ESIS-M63-L68L-PEPDS-BL - Cable gland
Cable gland, material for screw connection: PA, application: Ex, external cable diameter 34 mm ... 48 mm, shielding: no, connecting thread: M63 x 1.5, color: black/blue, with flat gasket
- Glow-wire test: 750°C
- Weatherproof sealing material
- Halogen-free
Documents
Technical Specifications
Product properties
| Application | Ex |
| No. of conductors | 1 |
| Manufacturer | WISKA |
| Manufacturer Designation | ESKE/1-L-i 63 |
| Shielded | no |
Ex data
| Cable types that can be used | for unarmored cables |
| Suited for EX-applications | yes |
Dimensions
| Length | 67 mm |
| Length of the connecting thread | 18 mm |
| Hole diameter | 63.1 mm ... 63.3 mm |
| Wrench size, union nut | 68 mm |
| Wrench size, support | 68 mm |
| Hexagon angular dimension | 75 mm |
| Thread type connection side | M63 x 1.5 |
| Thread pitch | 1.5 mm |
Connection data
| Tightening torque | 17 Nm (Support sleeve) |
Material specifications
| Material Screw connection | PA (Screw connection, halogen-free) |
| Seal material cable seal | EPDM |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 750 |
| Material for screw connection | PA |
Cable/line
| External Cable Diameter | 34 mm ... 48 mm |
| Halogen-free | yes |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (5 bar / 0.5 h) |
| Ambient Temperature (Operation) | -40 °C ... 75 °C (static) |
Approvals
| ATEX | II 2 G Ex e IIC Gb, II 2 D Ex tb IIIC Db |
| IECEx | Ex e IIC Gb, Ex tb IIIC Db |
