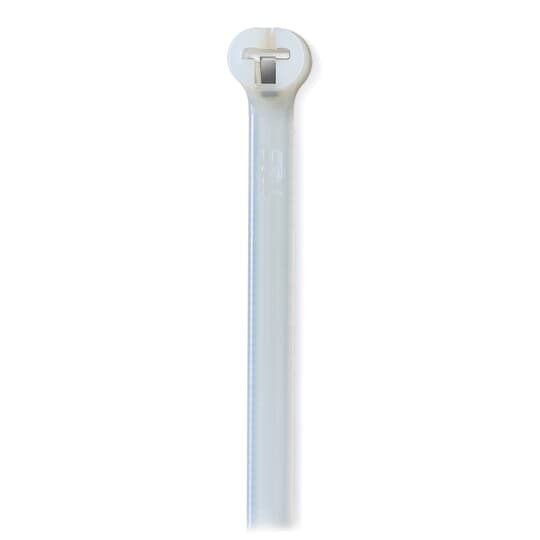

Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 185.67mm (7.31 Inches), Width of 4.9mm (0.19 Inches), Thickness of 1.09mm (0.043 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds)
Technical Specifications
Dimensions
| Product Net Width | 0.184 in, 4.67 mm |
| Product Net Depth / Length | 7.2 in, 183 mm |
Technical UL/CSA
| Flammability According to UL94 | V-2 |
Additional Information
| Brand / Label | Ty-Rap |
| Bundle Diameter | 0.12 to 1.89 in, 3 to 48 mm |
| Color | Natural |
| Lock type | Stainless Steel Barb |
| Material | Nylon/Polyamide 6.6 |
| Product Name | NYLON CABLE TIES AND ACCESSORIES |
| Product type | High Performance |
| Special Functions | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | UL E49405 |
| Tensile strength | 50 lb, 222 N |
| Thickness | 0.05 in, 1.3 mm |
Why Proax for ABB TY525M?
Proax is an authorized distributor of ABB TY525M and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
