Official DistributorBy ABB
SKU
MPN
7TAI029810R0011
Weight
0.002 kg

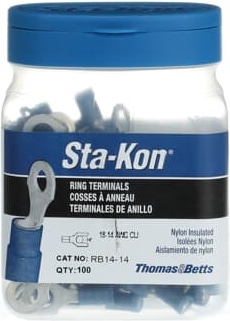

Nylon Insulated Ring Terminal, Length 1.08 Inches, Width .47 Inches, Maximum Insulation .162, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Technical Specifications
Additional Information
| Brand / Label | Sta-Kon |
| Color | Blue |
| Material | Copper |
| Product type | Nylon Insulated Ring Terminal |
Additional Information
| Special Functions | Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. |
| Standards | UL E9809 |
| Voltage Rating | 600 V |
| Wire Size | 18-14 AWG |
Why Proax for ABB RB14-14?
Proax is an authorized distributor of ABB RB14-14 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | RB1414 |
| Pack Size | 100 |
