OT2000E22CP
Official DistributorBy ABB
SKU
ABBOT2000E22CP
MPN
1SCA103953R1001
Weight
69.55 kg
This item is ineligible for free shipping due to its size/weight.

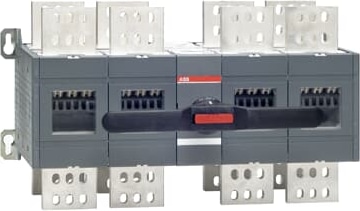

2000A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC303054M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303098D0201 |
Dimensions
| Product Net Width | 664 mm |
| Product Net Width | 26.14 in |
| Product Net Height | 377 mm |
| Product Net Height | 14.84 in |
| Product Net Depth / Length | 335 mm |
| Product Net Depth / Length | 13.19 in |
| Product Net Weight | 69.55 kg |
| Product Net Weight | 153.33 lb |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 2000 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 55 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 2000 A |
| Rated Operational Current AC-21B (Ie) | (500 V) 2000 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 2000 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 2000 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms |
| Switches Operating Mechanism | Mechanism Between the Poles |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Terminal Width | 100 mm |
| Tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
Technical UL/CSA
| Tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
