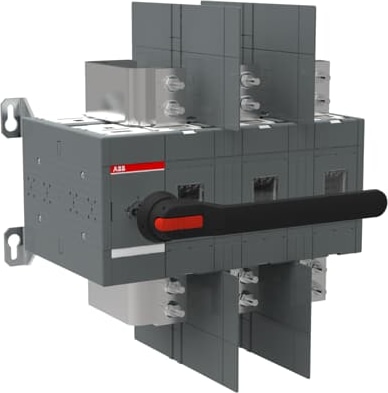

OT2000U03P
Official DistributorBy ABB
SKU
ABBOT2000U03P
MPN
1SCA117314R1001
Weight
54.5 kg
This item is ineligible for free shipping due to its size/weight.
3-pole, front operated, base mounted non-fusible diconnect switch with black IP65 handle and shaft, terminal bolt kit included
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
Dimensions
| Product Net Width | 490 mm |
| Product Net Height | 546 mm |
| Product Net Depth / Length | 310 mm |
| Product Net Weight | 54.5 kg |
Technical
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 2500 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of Line Terminals | Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 96 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Special Functions | No |
| Standards | UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Tightening torque | acc. IEC 60947-1 56 N·m |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 2000 A |
| Tightening torque | acc. IEC 60947-1 56 N·m |
| Tightening Torque UL/CSA | 500 in·lb |
Why Proax for ABB OT2000U03P?
Proax is an authorized distributor of ABB OT2000U03P and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
