OS250D12P
Official DistributorBy ABB
SKU
ABBOS250D12P
MPN
1SCA022726R8380
Weight
4.1 kg

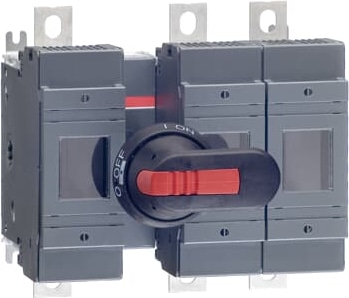

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),DIN,0,1,Handle and shaft included,
Technical Specifications
Supplier Information - USINY
| Lead Time | 28 day |
| Made to Order | No |
| Product Sales Status | Active |
| Quote Only | No |
| Stocked At Warehouses | USSVCEXPU |
| Warranty Return | Product under warranty must be returned |
ABB EcoSolutions
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
Dimensions
| Product Net Width | 208 mm |
| Product Net Height | 193 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 4.1 kg |
| Product Net Weight | 9 lb |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH0 |
| Fuse Size | NH1 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 17 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 250 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 140 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 145 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 170 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 250 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening torque | 30 ... 44 N·m |
Technical UL/CSA
| Tightening torque | 30 ... 44 N·m |
