Technical Specifications
Technical
| Standards | See code for structure |
| Sub-Function 3 | Fastening profile |
| Suitable for | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Accessory Type | 15. Distribution and earthing system |
| Mounting Type | Kit |
| Mounting Type | Pre assembled |
| Product type | 5P5P80P8090 |
| Material | Pickled steel sheet |

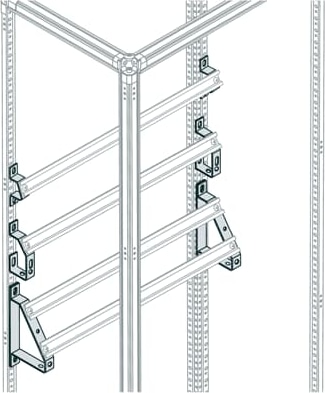

| Options Provided | 19. Angled supports for terminal boxes and earthing busbars |
| Remarks | ETIM |
Dimensions
| Product Net Width | 160 mm |
| Product Net Height | 125 mm |
| Product Net Depth / Length | 210 mm |
| Product Net Weight | 2.69 kg |
| Reference Depth/Length | 300 mm |
| Reference Depth/Length | 400 mm |
| Reference Depth/Length | 500 mm |
| Reference Depth/Length | 600 mm |
| Reference Depth/Length | 800 mm |
| Reference Depth/Length | 1000 mm |
| Reference Height | 1400 mm |
| Reference Height | 1600 mm |
| Reference Height | 1800 mm |
| Reference Height | 2000 mm |
| Reference Height | 2200 mm |
| Reference Width | 400 mm |
| Reference Width | 600 mm |
| Reference Width | 800 mm |
| Reference Width | 1000 mm |
| Reference Width | 1200 mm |
| Reference Width | 1600 mm |
Installation
| Instructions and Manuals | 1STM604121R0008 |
Why Proax for ABB EV1110?
Proax is an authorized distributor of ABB EV1110 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
