CE4K1-10B-11
Official DistributorBy ABB
SKU
ABBCE4K110B11
MPN
1SFA619552R1076
Weight
0.068 kg

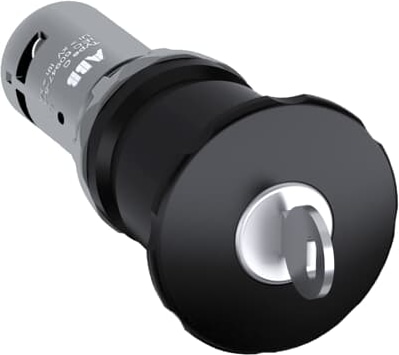

The CE4K1-10B-11 Machine Stop is: Compact - Machine Stop - Key release - Maintained - Mushroom 40 mm - Black - Non-illuminated - 1NO+1NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Technical Specifications
Dimensions
| Product Net Width | 0.04 m |
| Product Net Height | 0.04 m |
| Product Net Depth / Length | 0.103 m |
| Product Net Weight | 0.068 kg |
Technical
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Ambient Air Temperature | Storage -40 ... +85 °C |
| Color | Black |
| Actuator Type | Mushroom 40 mm |
| Illumination | Non-illuminated |
| Function | Maintained |
| Sub-Function | Key release |
| Key Code | Key code 71 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Enclosure Type NEMA | Type1 |
| Enclosure Type NEMA | Type12 |
| Enclosure Type NEMA | Type13 |
| Enclosure Type NEMA | Type3R |
| Enclosure Type NEMA | Type4 |
| Enclosure Type NEMA | Type4X |
| Pollution degree | 3 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 ... 300 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A |
| Rated Operational Current DC-13 (Ie) | (125 V) 0.2 A |
| Rated Operational Current AC-15 (Ie) | (240 V) 2 A |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 2 A |
| Power Loss | Maximum 5 W |
| Mechanical Durability | 50000 cycle |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible with Ferrule 2 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² |
| Connecting Capacity | Flexible 1 x 0.5 ...1.5 mm² |
| Connecting Capacity | Flexible 2 x 0.5 ...1.5 mm² |
| Connecting Capacity | Solid 1 x 0.5...1.5 mm² |
| Connecting Capacity | Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
Technical UL/CSA
| Connecting Capacity UL/CSA | 1x 22...14 AWG |
| Connecting Capacity UL/CSA | 2x 22...14 AWG |
