AD1086
Official DistributorBy ABB
SKU
ABBAD1086
MPN
1STQ009173A0000
Weight
6.149 kg

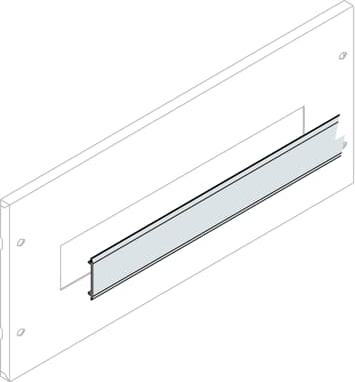

N.10 Oversized Din Cut-Out L=2000mm Ral7035
Technical Specifications
Technical
| Sub-Function 3 | Other |
| Suitable for | Modular boards - System pro E Power |
| Suitable for Product Class | Main Distribution Boards |
| Accessory Type | 12. Modular apparatus |
| Product type | 5P5P80P8090 |
| Options Provided | 11. Accessories for modular panel |
| Remarks | ETIM |
Design
| Material | Pickled steel sheet |
Dimensions
| Product Net Width | 2000 mm |
| Product Net Height | 75 mm |
| Product Net Depth / Length | 10 mm |
| Product Net Weight | 6.149 kg |
| Reference Depth/Length | 300 mm |
| Reference Depth/Length | 400 mm |
| Reference Depth/Length | 500 mm |
| Reference Depth/Length | 600 mm |
| Reference Depth/Length | 800 mm |
| Reference Depth/Length | 1000 mm |
| Reference Height | 1400 mm |
| Reference Height | 1600 mm |
| Reference Height | 1800 mm |
| Reference Height | 2000 mm |
| Reference Height | 2200 mm |
| Reference Width | 400 mm |
| Reference Width | 600 mm |
| Reference Width | 800 mm |
| Reference Width | 1000 mm |
| Reference Width | 1200 mm |
| Reference Width | 1600 mm |
Engineering
| Building Information Modeling – BIM | 1STC860077 |
Installation
| Instructions and Manuals | 1STM604121R0008 |
| Instructions and Manuals (Part 2) | 1SDC007110G0902 |
| Mounting Type | Kit |
| Mounting Type | Pre assembled |
Why Proax for ABB AD1086?
Proax is an authorized distributor of ABB AD1086 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
