V7EB35

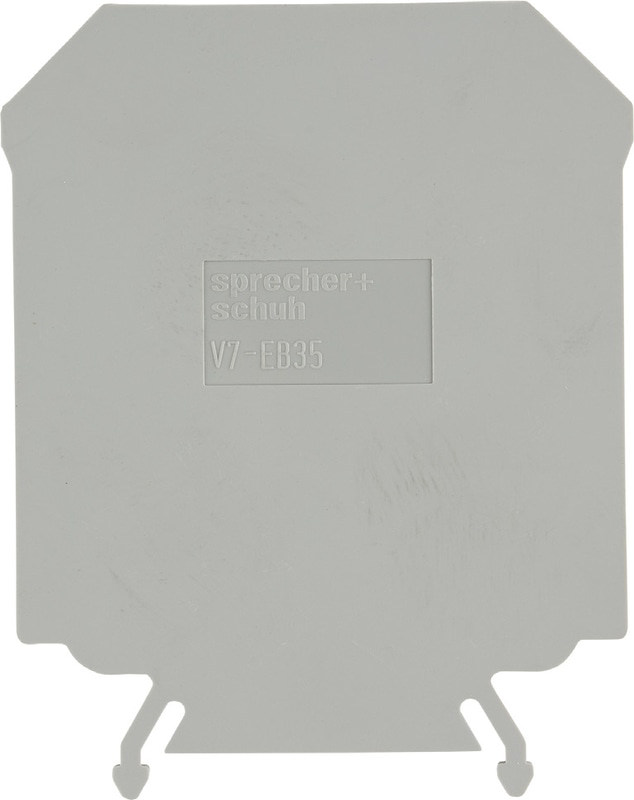

Official DistributorThe Sprecher + Schuh V7EB35 is a 2.0 mm grey end plate and partition plate for V7 series screw connection terminal blocks. It provides secure separation and insulation between blocks, supporting safe and organized wiring installations. Compatible with the full V7 terminal block range, it is suitable for feed-through, disconnect, fused, plug-in, and thermocouple types, as well as single or multi-level housings.
Documents
Series V7-W Terminal Blocks
A comprehensive collection of feed-through terminals rated 600 VAC, including many specialty blocks for a variety of applications.
Comprehensive Selection Of Standard & Special Terminals
Sprecher + Schuh's V7-W terminals are designed to meet the three most important criteria when selecting a terminal block line — ease of wiring, secure connections, and durability. The line is also comprehensive, offering a wide array of terminal types for most circuits and functions, from control to low-level power.
- 600VAC (800V-IEC)
- 30AWG to 500MCM (0.5mm2 to 240mm2 wire cross section)
- touch-safe
- dead front design
- Polyamide 6.6
- rated up to 90 degrees C (194 degrees F) continuous operation
- elastic to -40 degrees C (-40 degrees F)
Why Proax for Sprecher Schuh V7EB35?
Proax is the authorized distributor of Sprecher Schuh V7EB35. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 25 |
