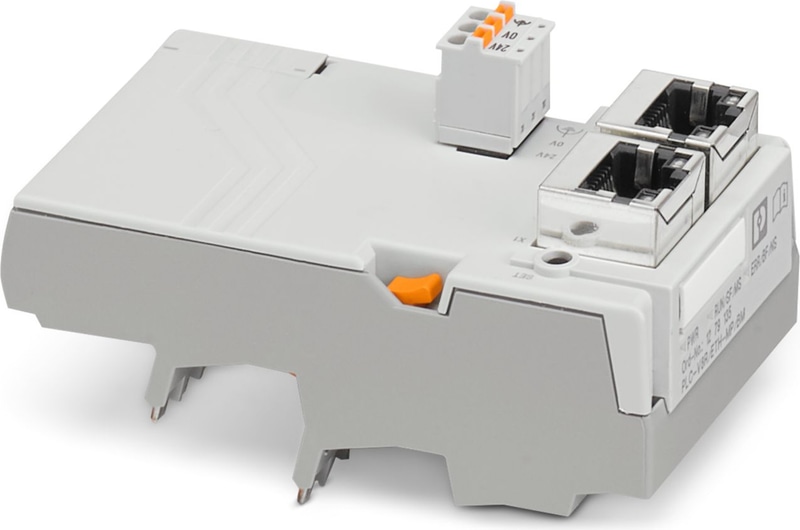

PLC-V8R/ETH-MP/BM - Communication module
Base module with multi-protocol connection (PROFINET, EtherNet/IP™, and Modbus/TCP) with 8 I/Os, for plug-in connection to 8 digital or analog PLC-INTERFACE terminal blocks, can be extended to 56 I/Os. Approved in accordance with ATEX/IECEx (Zone 2) and Ex Zone Class I, Zone 2 (Div. 2).
Documents
Technical Specifications
Notes
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Notes on operation | Please note any deviating technical data, installation directives, and approvals for the PLC-INTERFACE modules, which can be found with the respective item. |
| Note regarding laboratory testing | Environmental tests (vibration and shock): Upright non-perforated DIN rail, DIN rail screw-fastened every 10 cm, in-line mounting including upright and screw-fastenable end brackets |
Product properties
| Product family | PLC-INTERFACE |
| Operating mode | 100% operating factor |
Insulation characteristics: Air clearances and creepage distances
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Power consumption | 1.25 W (no other inputs and outputs active) |
| Power consumption | ≤ 1.27 W (no other inputs and outputs active) |
| Power consumption | 3.3 W (8 x PLC-INTERFACE terminal blocks active) |
| Power consumption | ≤ 4.5 W (8 x PLC-INTERFACE terminal blocks active) |
| Power consumption | 10.8 W (Active in combination with 3 x extension modules and 32 x PLC relay slices) |
| Power consumption | ≤ 18.6 W (Active in combination with 3 x extension modules and 32 x PLC relay slices) |
Air clearances and creepage distances
| Rated Insulation Voltage | 50 V |
| Rated surge voltage | 0.5 kV |
Supply
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC |
| Input Current | 40 mA (no other inputs and outputs active) |
| Input Current | ≤ 44 mA (no other inputs and outputs active) |
| Input Current | 105 mA (8 x PLC-INTERFACE terminal blocks active) |
| Input Current | ≤ 120 mA (8 x PLC-INTERFACE terminal blocks active) |
| Input Current | 57 mA (Active in combination with 3 x extension modules and no other inputs and outputs) |
| Input Current | ≤ 67 mA (Active in combination with 3 x extension modules and no other inputs and outputs) |
| Input Current | 127 mA (Active in combination with 3 x extension modules and 8 x PLC relay slices) |
| Input Current | ≤ 140 mA (Active in combination with 3 x extension modules and 8 x PLC relay slices) |
| Protective circuit | Reverse polarity protection |
| Protective circuit | Surge protection |
Digital inputs via PLC-INTERFACE plug-in contacts
| Number of Inputs | ≤ 8 |
| Process data update | < 1.5 ms (Local bus asynchronous) |
Analog inputs via PLC-INTERFACE plug-in contacts
| Number of Inputs | ≤ 8 |
| Process data update | < 1 s (Local bus asynchronous) |
Digital outputs via PLC-INTERFACE plug-in contacts
| Number of Outputs | ≤ 8 |
| Process data update | < 1 ms (Local bus asynchronous) |
Analog outputs via PLC-INTERFACE plug-in contacts
| Number of Outputs | ≤ 8 |
| Process data update | < 500 ms (Local bus asynchronous) |
COMBICON connection
| Connection Method | Push-in connection |
| Stripping length | 9 mm |
| Number of Positions | 3 |
| Note | Device supply and functional ground |
| Conductor cross-section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross-section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross-section flexible | 0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) |
| Conductor cross-section flexible | 0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve) |
| Conductor cross-section AWG | 26 ... 16 |
Ethernet
| Connection Method | RJ45 jack |
| Number of Connections | 2 |
Interface to the extension modules
| Connection Method | Insulation displacement connection |
| Number of Connections | 1 |
| Number of Positions | 4 |
Ethernet
| Designation | Ethernet |
| Number | 2 (Switched internally) |
| Protocol | PROFINET |
| Protocol | Modbus/TCP |
| Protocol | EtherNet/IP™ |
| Transmission Speed | 10/100 Mbps (full duplex) |
| Transmission length | ≤ 100 m |
Local bus
| Designation | Local bus |
| Cycle time (1 Erweiterungsmodul) | 5 ms |
| Cycle time (1 Erweiterungsmodul) | ≤ 12 ms |
| Cycle time (2 Erweiterungsmodule) | 15 ms |
| Cycle time (2 Erweiterungsmodule) | ≤ 35 ms |
| Cycle time (3 Erweiterungsmodule) | 28 ms |
| Cycle time (3 Erweiterungsmodule) | ≤ 65 ms |
Signaling
| Status display | PWR LED (green, orange, red) |
Item dimensions
| Width | 50 mm |
| Height | 49 mm |
| Depth | 93 mm |
Item dimensions with relay
| Width | 50 mm |
| Height | 111 mm |
| Depth | 93 mm |
Ambient conditions
| Degree of protection (Housing) | IP20 |
| Degree of protection (Connection terminal blocks) | IP20 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient Temperature (Operation) | -40 °C ... 60 °C (observe derating) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Altitude | ≤ 2000 m |
| Altitude | ≤ 3000 m (≤ 52 °C) |
| Altitude | ≤ 4000 m (≤ 46 °C) |
| Max. permissible relative humidity (operation) | 95 % (non-condensing) |
| Shock (operation) | 15g (11 ms, 3 axes) (EN 60068-2-27) |
| Vibration (Operation) | 5g (5 Hz ... 150 Hz, 3 axes) (EN 60068-2-6) |
EMC data
| Interference emission | EN 55016-2-3 (residential area) |
| Noise immunity (against electrostatic discharge) | EN 61000-4-2: ±6 kV (contact discharge) |
| Noise immunity (against electrostatic discharge) | EN 61000-4-2: ±8 kV (air discharge) |
| Noise immunity (against electromagnetic fields) | EN 61000-4-3: 10 V/m |
| Noise immunity (against conducted high frequency) | EN 61000-4-6: 10 V |
| Noise immunity (against fast transients (bursts)) | EN 61000-4-4: ±2 kV supply and signal lines |
| Noise immunity (against surge current loads (surges)) | EN 61000-4-5: 0.5 kV symmetrical on supply line |
| Noise immunity (against surge current loads (surges)) | EN 61000-4-5: 1 kV asymmetrical on supply line |
| Noise immunity (against surge current loads (surges)) | EN 61000-4-5: 1 kV asymmetrical on signal line |
| Noise immunity (Voltage interruptions) | EN 61131-2: 0%, 1 ms/10 ms for 20 tests |
| Noise immunity (Voltage interruptions) | EN 61131-2: 120% Unom for 30 min |
| Noise immunity (Voltage interruptions) | EN 61131-2: 85% Unom for 30 min |
| Noise immunity (Testing the supply voltage variation) | EN 61131-2: Reduction of UN, 100% between 10 s and 20 s, tested 10 times |
| Noise immunity (Testing the supply voltage variation) | EN 61131-2: Reduction of UN, 95% up to 5 s |
| Noise immunity (Testing the supply voltage variation) | EN 61131-2: Reduction of UN, 95% up to 60 s |
Air clearances and creepage distances
| Standards/regulations | IEC/EN/UL 61010-2-201 |
| Standards/regulations | EN IEC 60664-1 |
| Standards/regulations | DIN EN 61131-2 |
Mounting
| Mounting Type | Plug-in mounting |
| Assembly note | can be plugged onto 8 x PLC-INTERFACE terminal blocks |
| Mounting Position | horizontal |
