QUINT-HP-BAT/PB/48DC/7.0AH/PT
Weight
14.2 kg

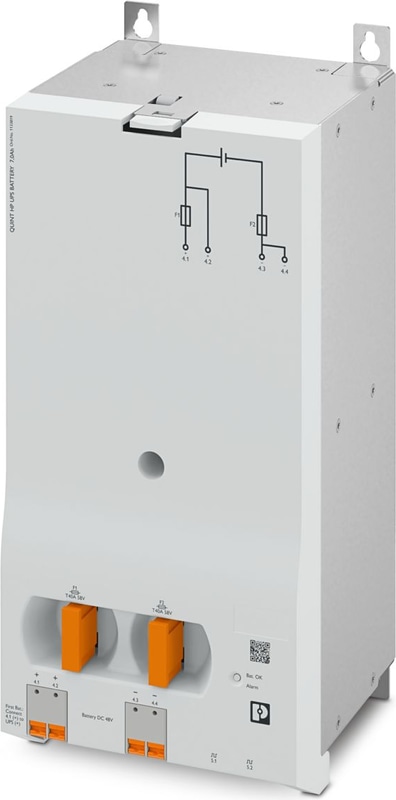

QUINT-HP-BAT/PB/48DC/7.0AH/PT - Battery module
Battery module (device with battery), VRLA-AGM, 48 V DC, 7 Ah
Documents
Technical Specifications
General
| Note on the battery | For proper operation of the QUINT-HP-UPS/120AC/2.5KVA/PT (1136813) and QUINT-HP-UPS/230AC/2.5KVA/PT (1136815) uninterruptible power supplies, at least 2 QUINT-HP-BAT/PB/48DC/7.0AH/PT (1133819) battery modules are required.For longer buffer times, multiples of 2 battery modules must always be connected to the UPS (2, 4, 6, 8, or 10). A maximum of 10 batteries can be connected to a single UPS of this type.QUINT-HP-UPS/120AC/1.5KVA/PT (1136804) and QUINT-HP-UPS/230AC/1.5KVA/PT (1136811) can be supplied with individual battery modules (1-5 modules). |
Input
| Input Voltage | 48 V DC (SELV) |
| Nominal capacity | 7 Ah |
| Charging current | 2.1 A |
| End-of-charge voltage | 56 V DC (20 °C) |
Output
| Output Current | 40 A |
| Output fuse | max. 40 A |
General
| Connection in parallel | yes |
| Connection in parallel | max. 5 |
| Battery type | BB Battery BP7-12FR |
| Battery technology | VRLA-AGM |
| IQ-Technology | yes |
| Latest startup date (battery only) | 12 Months (0 °C ... 20 °C) |
| Latest startup (battery only) - range | 9 Months ... 12 Months (20 °C ... 30 °C) |
| Latest startup (battery only) - range | 6 Months ... 9 Months (30 °C ... 40 °C) |
| Accumulator module service life (according to Eurobat) | 6 (20 °C) |
| Size designation | Block |
| Suitable for fast charging | yes |
| Temperature sensor | yes |
Battery
| Position | 4.x |
Connection technology
| Position marking | 4.1 (+), 4.2 (+) |
Conductor connection
| Connection Method | Push-in connection |
| rigid | 6 mm² ... 16 mm² |
| flexible | 6 mm² ... 16 mm² |
| flexible with ferrule without plastic sleeve | 6 mm² ... 16 mm² |
| flexible with ferrule with plastic sleeve | 6 mm² ... 16 mm² |
| AWG | 8 ... 6 |
| Stripping length | 18 mm |
Battery
| Position | 4.x |
Connection technology
| Position marking | 4.3 (-), 4.4 (-) |
Conductor connection
| Connection Method | Push-in connection |
| rigid | 6 mm² ... 16 mm² |
| flexible | 6 mm² ... 16 mm² |
| flexible with ferrule without plastic sleeve | 6 mm² ... 16 mm² |
| flexible with ferrule with plastic sleeve | 6 mm² ... 16 mm² |
| AWG | 8 ... 6 |
| Stripping length | 18 mm |
Product properties
| Product family | Battery module (device with battery) |
Insulation characteristics
| Protection class | III |
| Degree of pollution | 2 |
Item dimensions
| Width | 156.5 mm |
| Height | 354 mm |
| Depth | 143 mm |
Drill hole
| Diameter | 5.5 mm |
Installation dimensions
| Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 20 mm / 20 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient temperature (storage/transport) | -20 °C ... 40 °C |
| Ambient temperature (charge) | 0 °C ... 40 °C |
| Ambient temperature (discharge) | -20 °C ... 50 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % |
Ex data
| Suited for EX-applications | no |
