Official DistributorBy ABB
SKU
MPN
1SDA056810R1
Weight
96 kg

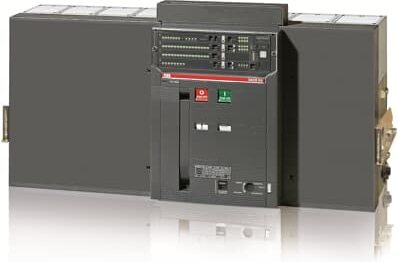

SACE EMAX MOVING PART FOR CIRCUIT-BREAKER E4S 4000A FOUR-POLE OVERCURRENT RELEASE PR121/P-LSIG R4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Technical Specifications
Dimensions
| Product Net Width | 684 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 96 kg |
Additional Information
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Electrical Durability | Ue = 500 ... 690 V 4000 cycle |
| Electrical Durability | 10 cycles per hour |
| Mechanical Durability | 15000 cycle |
| Mechanical Durability | 60 cycles per hour |
| Number of Poles | 4 |
| Power Loss | 660 W |
| Product Main Type | SACE Emax |
| Product type | Air Circuit Breaker |
| Rated Current (In) | 4000 A |
| Rated voltage (UR) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 4000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (380 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (415 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (440 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (500 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (660 V AC) 75 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (690 V AC) 75 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 75 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 3 s 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (380 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (440 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (500 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (660 V AC) 75 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (690 V AC) 75 kA |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Version | W |
Why Proax for ABB E4S4000PR121/P-LSIGIn=4000A4pWMP?
Proax is an authorized distributor of ABB E4S4000PR121/P-LSIGIn=4000A4pWMP and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E4S4000PR121PLSIGIn4000A4pWMP |
| Pack Size | 1 |
