1732386
Official DistributorSKU
PHX1732386
MPN
SPT 2,5/ 2-H-5,0-EX
Weight
0.003 kg
Series SPT

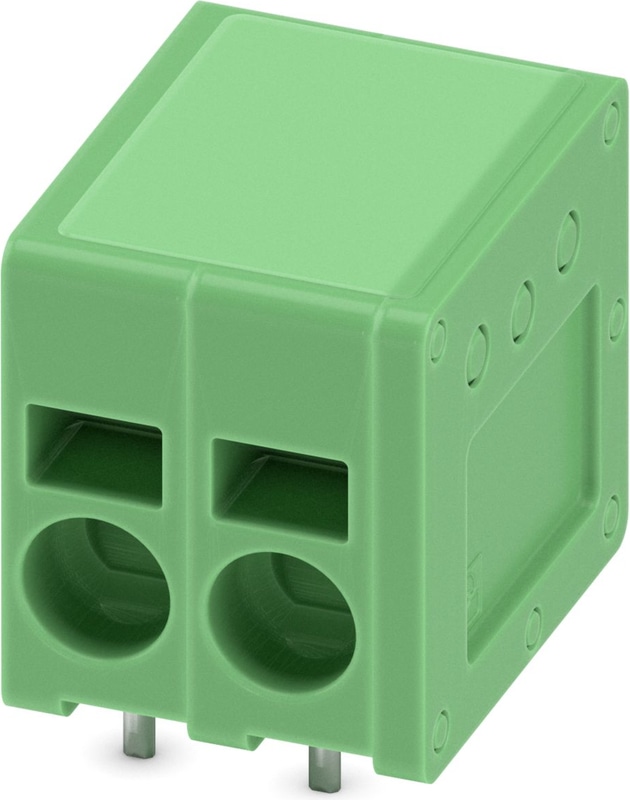

SPT 2,5/ 2-H-5,0-EX - PCB terminal block
PCB terminal block, nominal current: 23 A, nominal cross section: 2.5 mm2, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SPT 2,5/..-H-EX, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device
- Satisfies the more stringent safety requirements of “Ex e” protection according to IEC 60079-7 for potentially explosive areas
- Two solder pins reduce the mechanical strain on the soldering spots
Technical Specifications
Product properties
| Product family | SPT 2,5/..-H-EX |
| Product line | COMBICON Terminals M |
| Number of Positions | 2 |
| Pitch | 5 mm |
| Number of Connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Pin layout | Linear pinning |
| Solder pins per potential | 2 |
Electrical properties
| Nominal current IN | 23 A |
| Nominal voltage UN | 176 V |
| Rated current / conductor cross section | 23 A/2.5 mm² |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 176 V |
Ex approval
| Identification | 0344 II 2GD / Ex eb IIC Gb |
| EU-type examination certificate | KEMA 07ATEX0193 U |
| IECEx certificate | IECEx KEM 07.0057 U |
Connection technology
| Nominal cross section | 2.5 mm² |
Conductor connection
| Connection Method | Push-in spring connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² (Stripping length 8 mm) |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 1.5 mm² (Stripping length 8 mm) |
| Stripping length | 10 mm |
Mounting
| Mounting Type | Wave soldering |
| Pin layout | Linear pinning |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Color (Housing) | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Notes
| Note on application | Rated insulation voltage with pitch spacerRZ-SPT 2,5-2,5: 275 VRZ-SPT 2,5-5,0: 440 V |
Dimensions
| Pitch | 5 mm |
| Width [w] | 11.4 mm |
| Height [h] | 16 mm |
| Length [l] | 14.4 mm |
| Installed height | 13.5 mm |
| Solder pin length [P] | 2.5 mm |
| Pin dimensions | 0.8 x 0.8 mm |
PCB design
| Pin spacing | 8.2 mm |
| Hole diameter | 1.2 mm |
Connection test
| Specification | IEC 60998-2-2:2002-12 |
| Result | Test passed |
Test for conductor damage and slackening
| Specification | IEC 60998-2-2:2002-12 |
| Result | Test passed |
Pull-out test
| Specification | IEC 60998-2-2:2002-12 |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.2 mm² / solid / > 10 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.2 mm² / flexible / > 10 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 4 mm² / solid / > 60 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 2.5 mm² / flexible / > 50 N |
Temperature-rise test
| Specification | IEC 60998-2-1:2002-12 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Insulation resistance
| Specification | IEC 60998-1:2002-12 |
| Insulation resistance, neighboring positions | 109 Ω |
Air clearances and creepage distances |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 176 V |
| minimum clearance value - non-homogenous field (III/3) | 3 mm |
| minimum creepage distance (III/3) | 3.2 mm |
| minimum clearance value - non-homogenous field (III/2) | 3 mm |
| minimum creepage distance (III/2) | 3 mm |
| minimum clearance value - non-homogenous field (II/2) | 3 mm |
| minimum creepage distance (II/2) | 3.2 mm |
Vibration test
| Specification | IEC 60068-2-6:1995-03 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
Glow-wire test
| Specification | IEC 60998-1:2002-12 |
| Temperature | 850 °C |
| Time of exposure | 5 s |
Ambient conditions
| Ambient Temperature (Operation) | -50 °C ... 110 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Packaging specifications
| Type of packaging | packed in cardboard |
