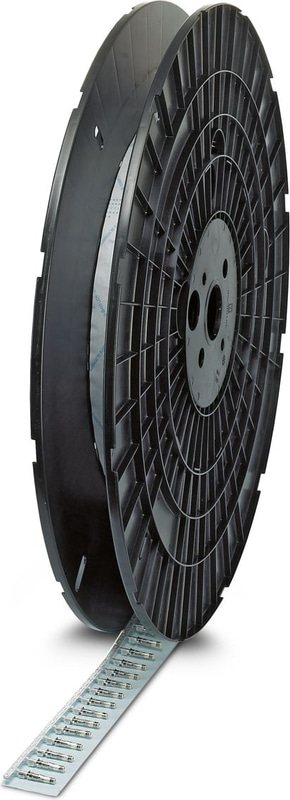

PV-C3F-C-6-R3000 - Crimp contact
Crimp contact, Range of articles: SUNCLIX, color: silver, number of positions: 1, min. conductor cross section: 6 mm2, max. conductor cross section: 6 mm2, rated current: 40 A, Connection method: Crimp, Contact connection type: Socket, Crimping recommendation: Crimp the conductor with the crimp contact in accordance with IEC 60352
Technical Specifications
Notes
| Notes on operation | Crimping recommendation: Crimp the conductor with the crimp contact in accordance with IEC 60352 |
| Note on application | When using the CRIMPFOX-P SR 6 manual crimping tool, item no. 1212755, please note the use of the PV-C3F/M-C locator. |
Safety note
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • The products are suitable for applications in plant, controller, and electrical device engineering. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product |
| Safety note | • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
| Safety note | • Operate the connector only when it is fully plugged in and interlocked. |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the minimum bending radius of the cable. Lay the cable without twisting it. |
Product properties
| Product family | SUNCLIX |
| Number of Positions | 1 |
Insulation characteristics
| Protection class | II |
| Degree of pollution | 2 |
Connection data
| Connection Method | Crimp |
| Contact connection type | Socket |
| Stripping length of the individual wire | 9 mm -1 mm |
Material specifications
| Color | silver |
| Contact Material | Cu alloy |
| Contact surface material | Ag |
Dimensions
| Width | 6.2 mm |
| Height | 7.7 mm |
| Length | 31.6 mm |
Electrical properties
| Rated current (6.0 mm²) | 40 A |
| Contact resistance | < 0.3 mΩ (Crimp to crimp) |
Mechanical data
| Insertion/withdrawal cycles | 100 |
| Insertion force | < 45 N ±10 N |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
