1020776
Official DistributorSKU
PHX1020776
MPN
PV-C4F-S 2,5-6 (+)
Weight
0.017 kg
This product is Not Cancellable/Not Returnable
Series PV-C

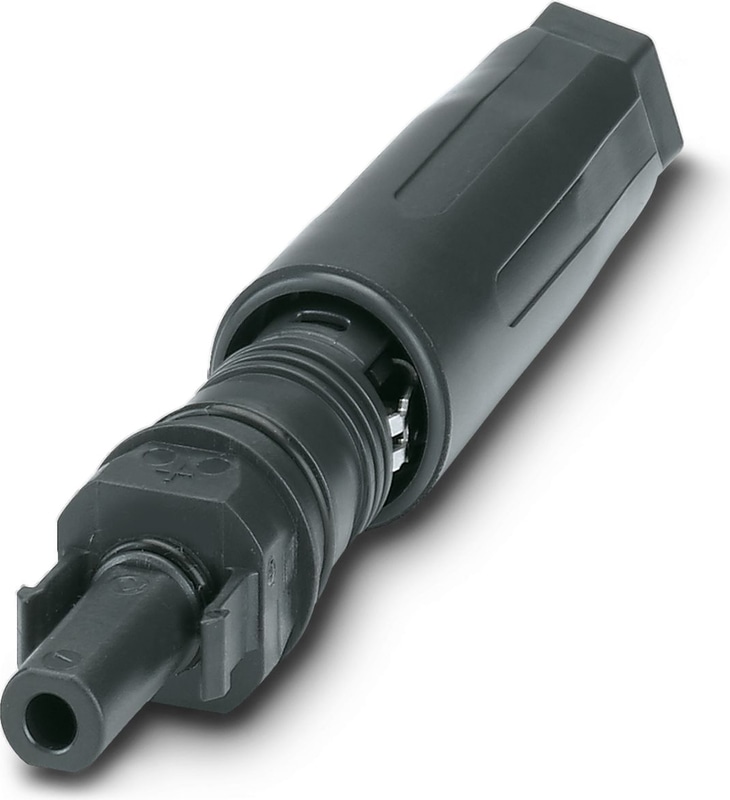

PV-C4F-S 2,5-6 (+) - Connector
Connector, Range of articles: SUNCLIX, housing material: PPE, color: black, number of positions: 1, min. conductor cross section: 2.5 mm2, max. conductor cross section: 6 mm2, rated voltage: 1500 V DC, rated current: 35 A, Connection method: Spring-cage, Contact connection type: Socket, min. cable diameter: 5 mm, max. cable diameter: 8 mm
- Convenient, secure spring connection technology
- High yield, thanks to silver-plated contacts
- Convenient release without a special tool
- One-piece DC connector
Technical Specifications
Safety note
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • The products are suitable for applications in plant, controller, and electrical device engineering. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product |
| Safety note | • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. |
| Safety note | • Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
| Safety note | • Operate the connector only when it is fully plugged in and interlocked. |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the minimum bending radius of the cable. Lay the cable without twisting it. |
Product properties
| Product family | SUNCLIX |
| Number of Positions | 1 |
Insulation characteristics
| Protection class | II |
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (II/2) | 1000 V |
| Rated voltage (III/2) | 1500 V |
| Nominal voltage ATD | 1500 V DC (III/2.00) in accordance with IEC 62852:2014/AMD1:2020 |
| Nominal voltage ATD | 1500 V DC in accordance with UL 6703 |
| Rated surge voltage | 16 kV |
| Rated surge voltage (II/2) | 12 kV |
| Rated surge voltage (III/2) | 12 kV |
| Rated surge voltage (III/3) | 16 kV |
| Rated current (6.0 mm²) | 35 A (in accordance with IEC 62852:2014-11) |
| Rated current (4.0 mm²) | 30 A (in accordance with IEC 62852:2014-11) |
| Rated current (2.5 mm²) | 20 A (in accordance with IEC 62852:2014-11) |
| Rated current | 30 A (in accordance with UL 6703) |
| Rated current | 35 A (in accordance with UL 6703) |
| Rated current | 50 A (in accordance with UL 6703) |
| Contact resistance | 0.45 mΩ |
| Contact resistance | ≤ 0.45 mΩ (when plugged in (without cable)) |
Connection data
| Connection Method | Spring-cage |
| Stripping length | 15 mm |
Dimensions
| Width | 20 mm |
| Height | 20 mm |
| Length | 82 mm |
Material specifications
| Color | black |
| Color of the housing part | black |
| Material | PPE |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | II |
| Insulating material | mPPE |
| Housing Material | PPE |
| Cable seal material | EPDM |
| Contact Material | Cu |
| Contact surface material | Ag |
| O-ring material | Silopren LSR 2660 |
Cable/line
| Cable Type | in accordance with IEC 62930 |
| External Cable Diameter | 5 mm ... 8 mm |
| External Cable Diameter | 5 mm ... 8 mm |
| Single wire, cross section | 2.5 mm² 6 mm² 14 AWG 10 AWG |
| Stripping length of the individual wire | 15 mm |
| Cable pull-out force | > 80 N |
Mechanical data
| Insertion/withdrawal cycles | 100 |
| Insertion force | 45 N ±10 N |
| Withdrawal force | 250 N ±50 N (when locked) |
Ambient conditions
| Degree of protection (when plugged in) | IP66 / IP68 (2 m / 24 h) |
| Degree of protection (not plugged in) | IP20 |
| Degree of Protection | IP66 / IP68 (2 m / 24 h) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (dependent on the derating curve) |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
Standards and Regulations
| Standards/specifications | IEC 62852:2014/AMD1:2020 |
| Standards/specifications | IEC 62852:2014/AMD1:2020 |
Accessories
PV-C PROTECTION CAP - Protective cap, Range of articles: SUNCLIX, color: black, self-sealing, without interlock, set consisting of: 1 protective cap for connector side and 1 protective cap for coupling side
