1034460
Official DistributorSKU
PHX1034460
MPN
SPT 2,5/ 4-V-EX PROFINET 2
Weight
0.006 kg
Series SPT

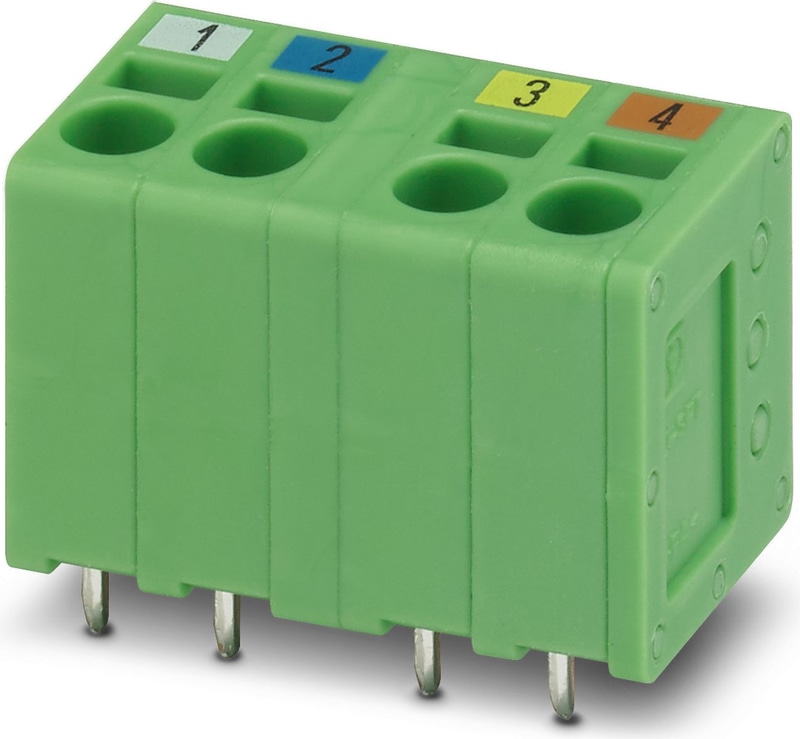

SPT 2,5/ 4-V-EX PROFINET 2 - PCB terminal block
PCB terminal block, nominal current: 23 A, nominal cross section: 2.5 mm2, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: SPT 2,5/..-V-EX PROFINET, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard. PCB terminal block satisfies the requirements of the “Guideline for PROFINET” in the 2017-05 edition, suitable for CAT5
- Satisfies CAT5 requirements in accordance with EN 50173 and ISO/IEC 11801
Technical Specifications
Product properties
| Product family | SPT 2,5/..-V-EX PROFINET |
| Product line | COMBICON Terminals M |
| Number of Positions | 4 |
| Pitch | 5 mm |
| Number of Connections | 4 |
| Number of rows | 1 |
| Number of potentials | 4 |
| Pin layout | Linear pinning |
| Solder pins per potential | 2 |
Electrical properties
| Nominal current IN | 23 A |
| Nominal voltage UN | 176 V |
| Rated current / conductor cross section | 23 A/2.5 mm² |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 176 V |
Ex approval
| Identification | 0344 II 2GD / Ex eb IIC Gb |
| EU-type examination certificate | KEMA 07ATEX0193 U |
| IECEx certificate | IECEx KEM 07.0057 U |
Connection technology
| Nominal cross section | 2.5 mm² |
Conductor connection
| Connection Method | Push-in spring connection |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² (Stripping length 8 mm) |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 1.5 mm² (Stripping length 8 mm) |
| Stripping length | 10 mm |
Mounting
| Mounting Type | Wave soldering |
| Pin layout | Linear pinning |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Color (Housing) | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Notes
| Note on application | The item is qualified for CAT5 Ethernet applications. For this reason, it is suited for use in IoT devices. |
Dimensions
| Pitch | 5 mm |
| Width [w] | 23.9 mm |
| Height [h] | 16.9 mm |
| Length [l] | 13.5 mm |
| Installed height | 14.4 mm |
| Solder pin length [P] | 2.5 mm |
| Pin dimensions | 0.8 x 0.8 mm |
PCB design
| Pin spacing | 8.2 mm |
| Hole diameter | 1.1 mm |
Air clearances and creepage distances |
| Insulating material group | I |
| Rated insulation voltage (III/3) | 176 V |
Ambient conditions
| Ambient Temperature (Operation) | -50 °C ... 110 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Packaging specifications
| Type of packaging | packed in cardboard |
