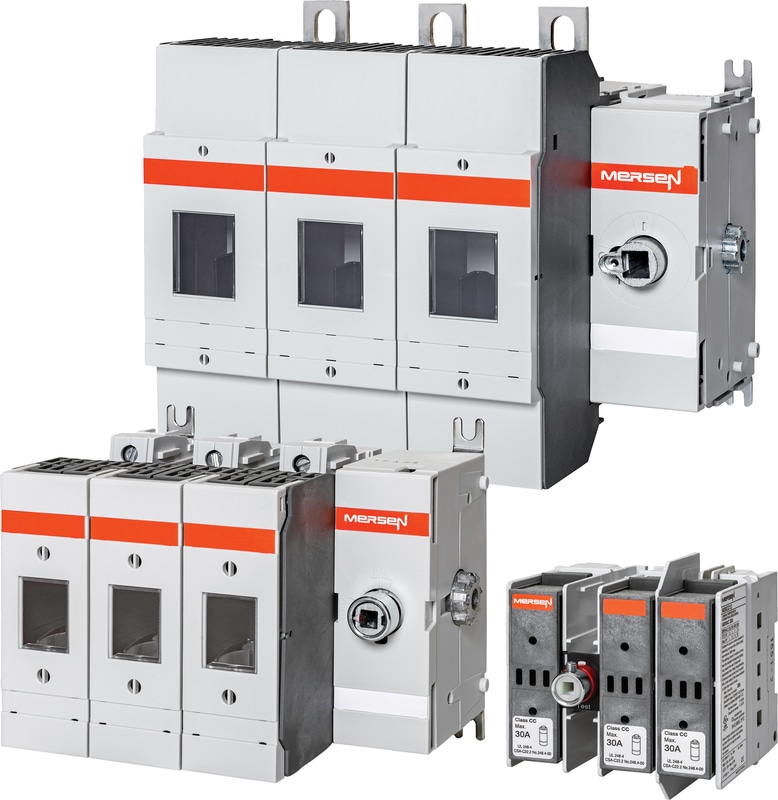

M200J40
Official DistributorBy Mersen
SKU
MERM200J40
Weight
3.293 kg
UL 98 Fusible Switch 600VAC Class J 200A 4-Pole Configuration: 4-0
Technical Specifications
| Rated Voltage Ac Ul | 600 V |
| Rated Voltage Dc Ul | 250 V |
| Ampere Rating | 200 A |
| Short Circuit Current Rating Sccr | 200 kA |
| Number of Poles | 4-Pole |
| Max Fuse Rating | 200 A |
| Installation Mounting | Direct Screw Mount |
| product dimensions/width | 227.6 mm |
| product dimensions/length | 218.2 mm |
| product dimensions/height | 74.9 mm |
| Connection Terminal Type | Blade |
| Rated Insulation Voltage | 1000 V |
| Fuse Type Class | Class J |
| max horsepower rating fla 3 phase/240V | 60 HP |
| max horsepower rating fla 3 phase/480V | 125 HP |
| max horsepower rating fla 3 phase/600V | 150 HP |
| Contact Type | Double Break |
