A120020PGCE
Official DistributorBy ABB
SKU
ABBA120020PGCE
MPN
7TBA005460R0188

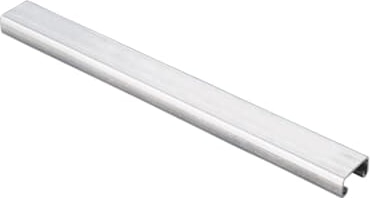

Channel, 12 Gauge, 1-5/8 Inch x 1-5/8 Inch, Length 20 Feet, Epoxy Coated Pre-Galvanized Steel
Technical Specifications
Dimensions
| Product Net Width | 1-5/8 in |
| Product Net Depth / Length | 20 ft |
Additional Information
| Application | For casting into concrete walls, floors or ceilings to provide for attachment anywhere along the continuous slot. |
| Brand / Label | Superstrut |
| Effective Date | 20210122 |
| Gauge | 12 gauge |
| Product Main Type | 1-5/8 MODULAR STRUT SYSTEMS |
| Product Name | Other |
| Product type | Channels and Concrete Inserts |
| Special Functions | Load ratings as shown have a safety factor of 3 in 3000 lb. hard rock concrete |
| Surface Finishing | Pre-galvanized |
