VE5-2
Official DistributorBy ABB
SKU
ABBVE52
MPN
1SBN030210R1000
Weight
0.146 kg

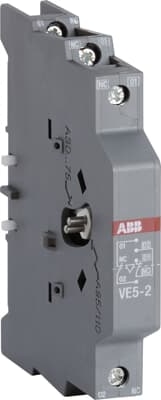

VE5-2 is a mechanical and electrical interlock unit used for the mechanical and electrical interlocking of two contactor of the A contactor serie, in the case, e.g. of reversing contactors, changeover contactors or star-delta starters.
VE5-2 includes 2 built-in N.C. interlocking contacts allowing to create the electrical interlocking with wiring to the respective contactor's coils.
VE5-1 is available in multiple pack.
Technical Specifications
Dimensions
| Product Net Width | 15 mm |
| Product Net Depth / Length | 89.65 mm |
| Product Net Height | 108 mm |
| Product Net Weight | 0.146 kg |
Technical
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 2P |
| Standards | IEC/EN 60941-5-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| Rated Operational Current AC-15 (Ie) | (690 V) 2 A |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 4 A |
| Rated Operational Current AC-15 (Ie) | (380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (48 V) 2.8 A |
| Rated Operational Current DC-13 (Ie) | (72 V) 1 A |
| Rated Operational Current DC-13 (Ie) | (125 V) 0.55 A |
| Rated Operational Current DC-13 (Ie) | (250 V) 0.3 A |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| Rated Insulation Voltage (Ui) | acc. to UL/CSA 600 V |
| Mechanical Durability | 5 million |
| Power Loss | at Rated Operating Conditions per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable for | AF45 |
| Suitable for | AF50 |
| Suitable for | AF63 |
| Suitable for | AF75 |
| Suitable for | AF95B |
| Suitable for | A30 |
| Suitable for | A40 |
| Suitable for | A45 |
| Suitable for | A50 |
| Suitable for | A63 |
| Suitable for | A75 |
| Suitable for | A95 |
| Suitable for | A110 |
| Suitable for | AE45 |
| Suitable for | AE50 |
| Suitable for | AE63 |
| Suitable for | AE75 |
| Suitable for | TAE45 |
| Suitable for | TAE50 |
| Suitable for | TAE75 |
| Suitable for | GA75 |
| Suitable for | GAE75 |
| Suitable for | AX32 |
| Suitable for | AX40 |
| Suitable for | AX50 |
| Suitable for | AX65 |
| Suitable for | AX80 |
| Suitable for | AX95 |
| Suitable for | AX115 |
| Suitable for | AX150 |
| Product Name | Mechanical and Electrical Interlock Unit |
