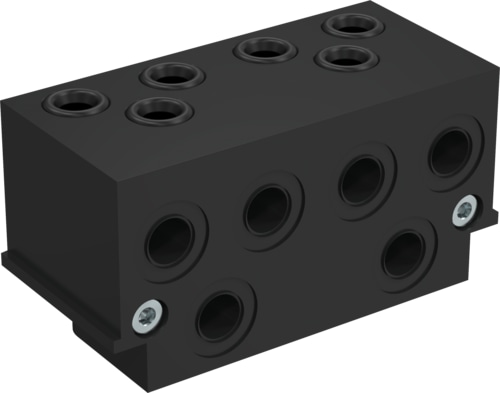

WER4000FPL06-06-A
Official DistributorBy Zimmer
SKU
ZIMWER4000FPL0606A
Weight
0.306 kg
Energy element
Documents
Technical Specifications
| Number of fluid couplings | 6 |
| Fixing thread | G1/8" |
| Operating pressure max. [bar] | 10 |
| Operating pressure min. [bar] | -0.6 |
| Operating pressure [bar] | -0.6 ... 10 |
| Operating temperature [°C] | Fehlende Variable |
| Flow per connector [l/min] | 500 |
| Weight [kg] | 0.31 |
| Nominal diameter | 1/8" |
| Compatible with | Fixed part |
| Compatible with installation size | WWR1000 – 160 / 200 |
| Protection to IEC 60529 | IP54 |
| Series | WER4000 |
| Transmission Mode | pneumatic |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer WER4000FPL06-06-A?
Proax is the authorized distributor of Zimmer WER4000FPL06-06-A. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | WER4000FPL0606A |
| Pack Size | 1 |
