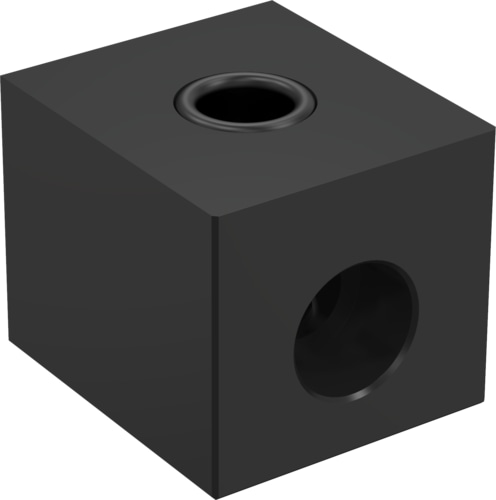

WER3000FPL01-04
Official DistributorBy Zimmer
SKU
ZIMWER3000FPL0104
Weight
0.126 kg
Energy element
Fluid and electrical energy transfer Standardised and packaged Short set up time for maintenance work Custom-specifically modifiable
Documents
Technical Specifications
| Number of fluid couplings | 1 |
| Fixing thread | G3/8" |
| Operating pressure max. [bar] | 10 |
| Operating pressure min. [bar] | -0.6 |
| Operating pressure [bar] | -0.6 ... 10 |
| Operating temperature [°C] | Fehlende Variable |
| Flow per connector [l/min] | 1100 |
| Weight [kg] | 0.13 |
| Operating pressure max. [bar] | 15 |
| Compatible with | Fixed part |
| Compatible with installation size | WWR / WWR1000 – 100 / 125 / 160 / 200 |
| Protection to IEC 60529 | IP54 |
| Series | WER3000 |
| Transmission Mode | pneumatic |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer WER3000FPL01-04?
Proax is the authorized distributor of Zimmer WER3000FPL01-04. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | WER3000FPL0104 |
| Pack Size | 1 |
