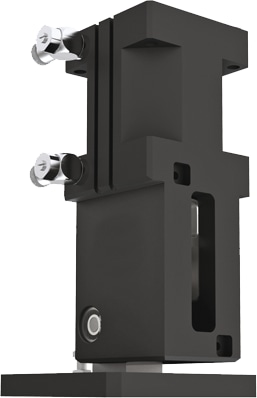

SWM1063
Official DistributorBy Zimmer
SKU
ZIMSWM1063
Weight
3.47 kg
Series swm1000
Angle pivot unit
"The slim" Optimised design Adjusted to a gantry axle, you can integrate the unit in your machine loading system to save space Large locating flange The large mounting surface simplifies your design and allows secure attachment of follow-on tools Failure-free continuous operation Our uncompromising "Made in Germany" quality guarantees up to 10 million maintenance-free cycles
Technical Specifications
| Type of drive | pneumatical |
| Operating pressure max. [bar] | 8 |
| Operating pressure min. [bar] | 3 |
| Installation Size | SWM1063 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Torque 0° [Nm] | 64 |
| Torque 45° [Nm] | 39 |
| Torque 90° [Nm] | 64 |
| Fa [N] | 500 |
| Weight [kg] | 3.5 |
| Mr [Nm] | 45 |
| Nominal operating pressure [bar] | 6 |
| Protection to IEC 60529 | IP30 |
| Series | SWM1000 |
| Swivel angle [°] | 90 |
| Swivel angle regulable +/- [°] | 3 |
| Swivel time without extension load [s] | 0.6 |
| Repetition accuracy +/- [°] | 0.01 |
| Air volume per cycle [cm³] | 340 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
Why Proax for Zimmer SWM1063?
Proax is the authorized distributor of Zimmer SWM1063. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
