Technical Specifications
| Type of drive | pneumatical |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Pressure force max. [N] | 100 |
| Weight [kg] | 0.19 |
| Stroke [mm] | 25 |
| Series | SHD |
| Retraction force [N] | 100 |
| Air volume per cycle [cm³] | 12 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |

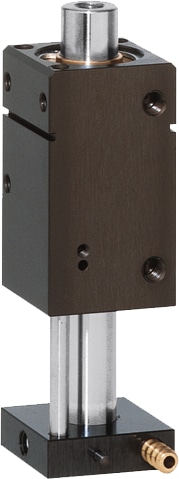

Why Proax for Zimmer SHD25?
Proax is the authorized distributor of Zimmer SHD25. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
