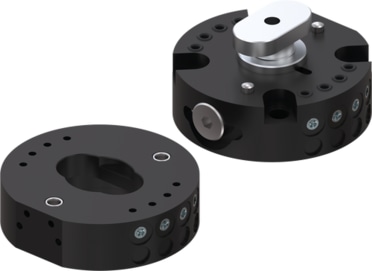

HWR2050F
Official DistributorBy Zimmer
SKU
ZIMHWR2050F
Series hwr2000
Tool changer
Change in seconds Reduce your start up costs and minimise downtimes by changing your tool in seconds Integrated air transfer system For supplying pneumatic actuators. Additional media can be transmitted using optional energy elements. Includes loss protection Undesired falling of work pieces is eliminated - this means the highest safety for man and machine
Documents
Technical Specifications
| Connecting flange according EN ISO 9409-1 | TK 50 |
| Type of drive | manual |
| Operating pressure [bar] | Fehlende Variable |
| Installation Size | HWR2050 |
| Operating temperature [°C] | 5 ... +80 |
| Operating temperature max. [°C] | 80 |
| Operating temperature min. [°C] | 5 |
| Flow per connector [l/min] | 150 |
| Recommended handling weight [kg] | 20 |
| Electrical energy transfer | optional |
| Pneumatic energy transfer [Quantity] | 8 |
| Fa [N] | 1600 |
| Weight [kg] | 0.23 |
| Mr [Nm] | 80 |
| My [Nm] | 70 |
| Nominal operating pressure [bar] | 6 |
| Series | HWR2000 |
| Self locking mechanism when locking | mechanical |
| Moment of inertia [kgcm²] | 0.86 |
| Locking stroke [mm] | 4 |
| Repetition accuracy in X, Y [mm] | 0,02 |
| Repetition accuracy in Z [mm] | 0.01 |
| PWIS-free | Yes |
| REACH compliant | Yes |
| RoHS Compliant | Yes |
