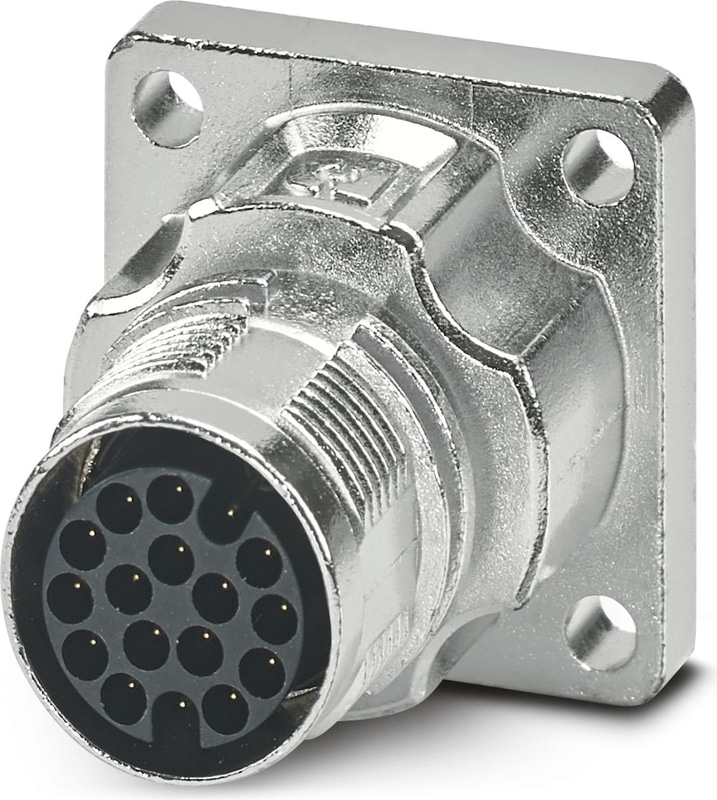

M17-17P1N8AW500S - Device connector front mounting
M17, Device connector front mounting, series: M17 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of pos.: 17, contact connection type: Pin, Crimp connection, flange dimensions: 26 mm x 26 mm, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- Crimping connection: vibration- and temperature-resistant assembly
- All housing can be fitted with pin or socket contacts
- Safe use in the field, thanks to high degree of protection
Documents
Technical Specifications
Notes
| Order information: | Order 17 x 0.6 mm crimp contacts separately |
Safety note
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Safety note | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
| Safety note | • The products are suitable for applications in plant, controller, and electrical device engineering. |
| Safety note | • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. |
| Safety note | • Assembled products may not be manipulated or improperly opened. |
| Safety note | • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). |
| Safety note | • When using the product in direct connection with third-party manufacturers, the user is responsible. |
| Safety note | • For operating voltages > 50 V AC, conductive connector housings must be grounded |
| Safety note | • Ensure that the protective or functional ground has been properly connected. |
| Safety note | • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector |
| Safety note | • Only use tools recommended by Phoenix Contact |
| Safety note | • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. |
| Safety note | • Operate the connector only when it is fully plugged in and interlocked. |
| Safety note | • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. |
| Safety note | • Observe the minimum bending radius of the cable. Lay the cable without twisting it. |
| Safety note | • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Material specifications
| Flammability rating according to UL 94 | V0 |
Mechanical data
| Insertion/withdrawal cycles | 100 |
Insulating body
| Coding | N |
| Insertion/withdrawal cycles | 100 |
| Connection Method | Crimp connection |
| Contact switching type | Pin |
| Application | Signal |
| Number of Positions | 17 |
| Connection profile | 17 |
| Contact diameter Signal contacts | 0.6 mm |
| Litz wire cross-section Signal contacts min. | 0.06 mm² |
| Litz wire cross-section Signal contacts max. | 0.5 mm² |
| Nominal current per signal contact | 3.6 A |
| Note | for max. connection cross section |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Installation height | 3000 m |
Housing
| Housing Material | GD-Zn |
| Flange dimensions | 26 mm x 26 mm |
| Type of locking | for standard and ONECLICK fast locking system |
| Degree of protection (plugged in) | IP67 |
| Degree of protection (plugged in) | IP68, 24 h / 2 m |
| Thread type | M17 |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (see derating curve) |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
