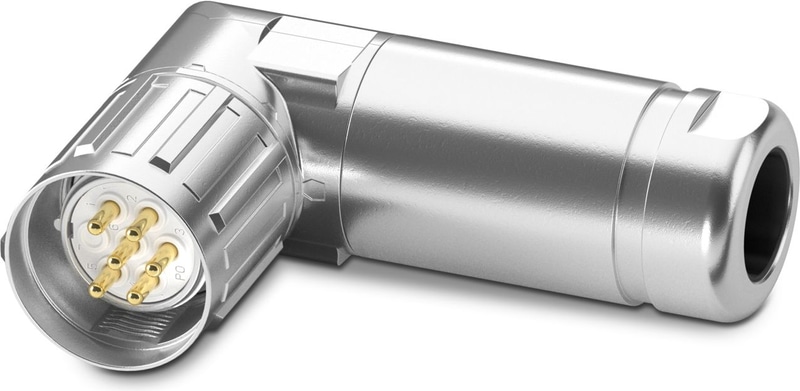

The figure shows the 6-pos. product version
1619441
Official DistributorSKU
PHX1619441
MPN
CA-09P1N12T0DNS
Weight
0.201 kg
Series CA
CA-09P1N12T0DNS - Cable connector
M23, Cable connector, series: CA, angled, shielded: yes, SPEEDCON, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Pin, Solder connection, cable diameter range: 3 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1243559
- Angled cable outlet for confined spaces
- Can be adapted to various applications, thanks to adjustable cable outlet direction
- Safe use in the field, thanks to high degree of protection
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Reduced connection time with SPEEDCON fast locking system
- Solder connection: proven connection technology for various litz wires
Documents
Technical Specifications
Insulating body
| Coding | N |
| Insulation body material | PBT |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Insertion/withdrawal cycles | 100 |
| Connection Method | Solder connection |
| Contact switching type | Pin |
| Application | Signal |
| Number of Positions | 9 |
| Direction of rotation | Standard |
| Connection profile | 8+1 |
| Contact diameter Power contacts | 2 mm |
| Litz wire cross-section Power contacts max. | 2.5 mm² |
| Rated current Power contacts | 20 A |
| Rated voltage | 48 V AC |
| Rated voltage | 74 V DC |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Contact diameter Signal contacts | 1 mm |
| Litz wire cross-section Signal contacts max. | 1 mm² |
| Nominal current per signal contact | 8 A |
Housing
| Housing Material | Metal |
| Type of locking | SPEEDCON |
| Pg screw connection | none |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
Seal
| External Cable Diameter | 3 mm ... 14.5 mm |
| Seal material | NBR |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
