Phoenix Contact 1624024

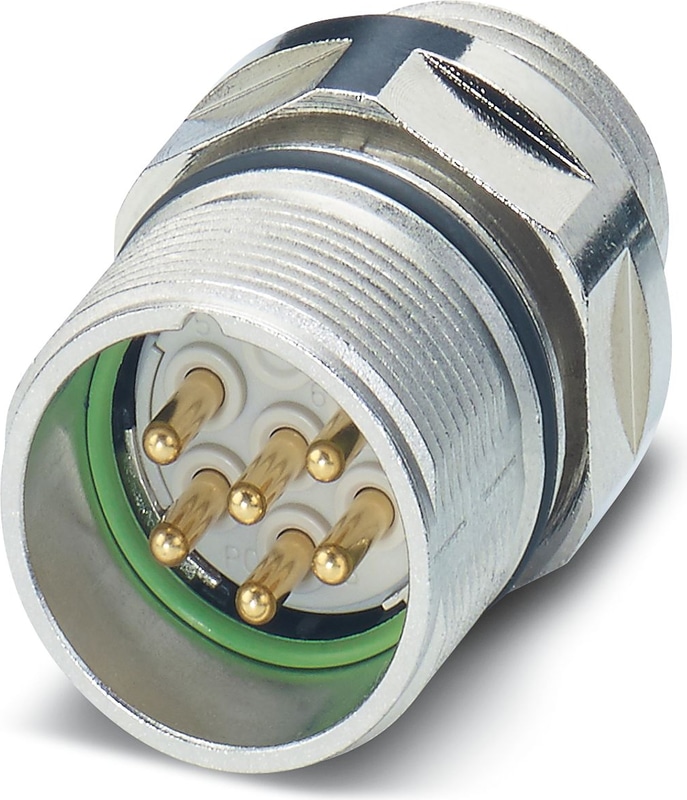

The figure shows the 6-pos. product version with solder contacts
AllConnectorsCircular connectors

1624024

Official Distributor

By Phoenix Contact

SKU
PHX1624024
MPN
CA-09P1N8A6L00
Weight
0.037 kg
Series CA

CA-09P1N8A6L00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial seal, Central fastening M20 x 1.5, can be positioned via a locking nut, coding: N

  • Safe use in the field, thanks to high degree of protection
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Crimping connection: vibration- and temperature-resistant assembly
Technical Specifications

Notes

Order information:Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm separately

Material specifications

Flammability rating according to UL 94V0

Insulating body

NoteOrder information: Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm separately
CodingN
Insulation body materialPA 6.6
Connection MethodCrimp connection
Contact switching typePin
ApplicationSignal
Number of Positions9
Direction of rotationStandard
Connection profile8+1
Contact diameter Power contacts2 mm
Litz wire cross-section Power contacts min.1 mm²
Litz wire cross-section Power contacts max.2.5 mm²
Rated current Power contacts20 A
Rated voltage48 V AC
Rated voltage74 V DC
Rated surge voltage1.5 kV
Overvoltage categoryIII
Degree of pollution3
Contact diameter Signal contacts1 mm
Litz wire cross-section Signal contacts min.0.08 mm²
Litz wire cross-section Signal contacts max.1 mm²
Nominal current per signal contact8 A

Housing

Housing MaterialTurned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of lockingfor standard and SPEEDCON interlock
Pg screw connectionnone
Degree of protection (plugged in)IP67
Thread typeM23

Ambient conditions

Ambient temperature (storage/transport)15 °C ... 25 °C
Permissible humidity (storage/transport)50 % ... 65 %
Accessories
  • 1603513
    1603513
    RC-5CP2000 - Crimp contact, Pin, turned, contact diameter: 2 mm, crimp range: 1 mm2 ... 1.5 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241634
  • 1603505
    1603505
    RC-5AP2000 - Crimp contact, Pin, turned, contact diameter: 2 mm, crimp range: 1.5 mm2 ... 2.5 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241634
  • 1603529
    1603529
    RC-5SP2000 - Crimp contact, Pin, turned, contact diameter: 2 mm, crimp range: 0.5 mm2 ... 0.75 mm2, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241632
  • 1604225
    1604225
    Protective cap - RC-Z2059
  • 1611797
    1611797
    Plastic anti-static dust protection cap - RC-Z2469
  • 1604260
    1604260
    Metal protective cap - RC-Z2104
  • 1604236
    1604236
    Metal protective cap - RC-Z2068
  • 1620699
    1620699
    CA-Z0001 - Unlocking tool for contact carriers for snapping in the M23 signal device connectors
  • 1620624
    1620624
    Color-coding, color: green
  • 1596770
    1596770
    RC-11P2000 - Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.08 mm2 ... 0.22 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240882
  • 1597862
    1597862
    RC-12P2000 - Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.14 mm2 ... 0.56 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1240882
  • 1602996
    1602996
    RC-1KP2000 - Crimp contact, Pin, turned, Single contact, contact diameter: 1 mm, crimp range: 0.5 mm2 ... 1 mm2, Contact release tool not necessary for the 12- and 17-pos. crimp versions of the M23-PRO series, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1241571
  • 1603321
    1603321
    RC-22P2000 - Crimp contact, Pin, rolled, Single contact, contact diameter: 1 mm, crimp range: 0.22 mm2 ... 0.56 mm2, Single contact, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %)
  • 1603310
    1603310
    RC-21P2000 - Crimp contact, Pin, rolled, Single contact, contact diameter: 1 mm, crimp range: 0.08 mm2 ... 0.22 mm2, Single contact
