QPD T 4PE1,5 3X5-10 BK
Weight
0.173 kg
Series QPD-T

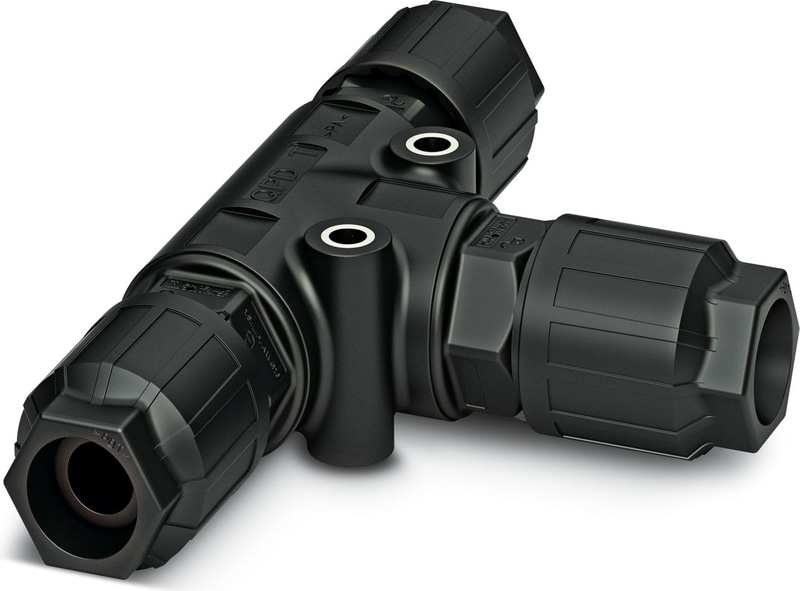

QPD T 4PE1,5 3X5-10 BK - T distributor
T distributor, product family: QPD, connection method: IDC connection, number of positions: 4+PE, 0.5 mm2 ... 1.5 mm2, 690 V, 17.5 A, PA, black, With three QUICKON nuts, coding: Coding profile, external cable diameter: 6 mm ... 10 mm
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Flexible and compact - by connecting connections internally, H and T-distributors can be used to branch master cables or they can be used as star distributors
Documents
Technical Specifications
Product properties
| Product family | QPD |
| Type | T distributor |
| Number of Positions | 5 |
| Connection profile | 4+PE |
| Position marking | 1, 2, 3, N, PE |
| Number of Connections | 3 |
| No. of cable outlets | 3 |
| Coding | Coding profile |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Connection technology
| Connection Method | IDC connection |
| Frequency of connections between conductors of the same cross section | max. 10 |
Conductor connection
| Conductor cross section flexibel | 0.5 mm² ... 1.5 mm² |
| Conductor cross section solid | 0.5 mm² ... 1.5 mm² |
| Connection cross section AWG | 20 ... 16 |
| Tightening torque Union nut | 8 Nm |
| Tightening torque Locking nut | 5 Nm |
Dimensions
| Width | 76 mm |
| Height | 31 mm |
| Length | 154.6 mm |
Electrical properties
| Rated surge voltage (II/2) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 17.5 A |
| Contact resistance | < 3 mΩ |
| Rated voltage (II/2) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 690 V |
| Nominal voltage UN | 690 V AC |
| Nominal voltage UN | 690 V DC |
| Nominal current IN | 17.5 A |
Mechanical data
| Insertion/withdrawal cycles | max. 50 |
Material specifications
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | silver-plated |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC/PE/TPE/rubber |
Cable/line
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| External Cable Diameter | 6 mm ... 10 mm |
| Wire diameter including insulation | 1.6 mm ... 3 mm |
| Position marking | 1, 2, 3, N, PE |
| Material wire insulation | PVC/PE/TPE/rubber |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 |
| Degree of Protection | IP69K |
| Degree of Protection | Touch-proof when not plugged in (IP2X) |
| Impact strength | IK07 (-25 °C) |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
