1417490
Official DistributorSKU
PHX1417490
MPN
QPD T 4PE6,0 BK
Weight
0.298 kg
Series QPD-T

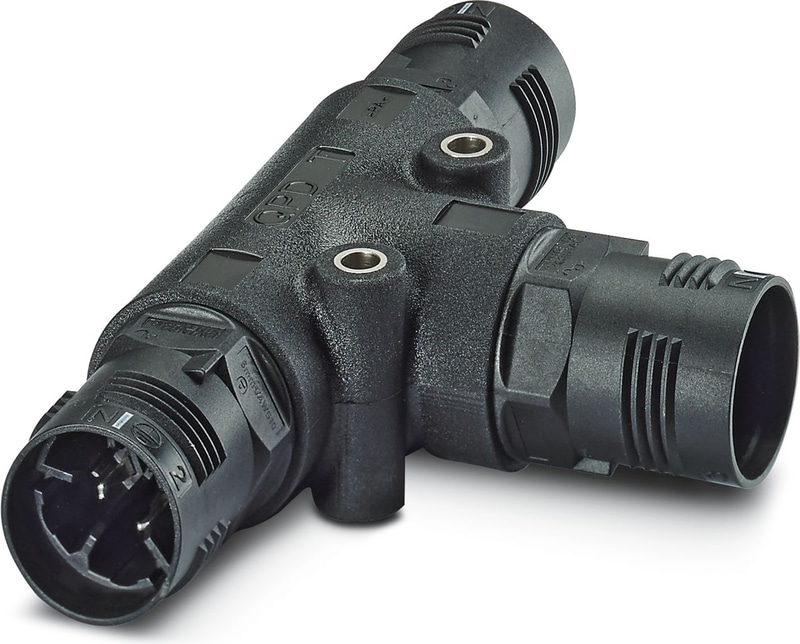

QPD T 4PE6,0 BK - T distributor
T distributor, product family: QPD, connection method: IDC connection/ QUICKON fast connection, number of positions: 4+PE, 2.5 mm2 ... 6 mm2, 690 V, 40 A, PA, black, without QUICKON nut
Technical Specifications
Product properties
| Product family | QPD |
| Type | T distributor |
| Number of Positions | 5 |
| Connection profile | 4+PE |
| Number of Connections | 3 |
| No. of cable outlets | 3 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Connection technology
| Connection Method | IDC connection |
| Connection Method | QUICKON fast connection |
| Frequency of connections between conductors of the same cross section | max. 10 |
Conductor connection
| Conductor cross section flexibel | 2.5 mm² ... 6 mm² |
| Conductor cross section solid | 2.5 mm² ... 6 mm² |
| Connection cross section AWG | 14 ... 10 |
| Tightening torque Union nut | 15 Nm |
Electrical properties
| Rated surge voltage (II/2) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 40 A |
| Contact resistance | < 3 mΩ |
| Rated voltage (II/2) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 690 V |
| Nominal current IN | 40 A |
Mechanical data
| Insertion/withdrawal cycles | max. 50 |
Material specifications
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | Silver-plated |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC/PE/TPE/rubber |
Cable/line
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire diameter including insulation | 2.95 mm ... 5 mm |
| Material wire insulation | PVC/PE/TPE/rubber |
| Halogen-free | yes |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (2 m / 24 h) |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
