Phoenix Contact 1298077
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
ES-FT-BPC-C 95-120 BK
Weight
0.107 kg

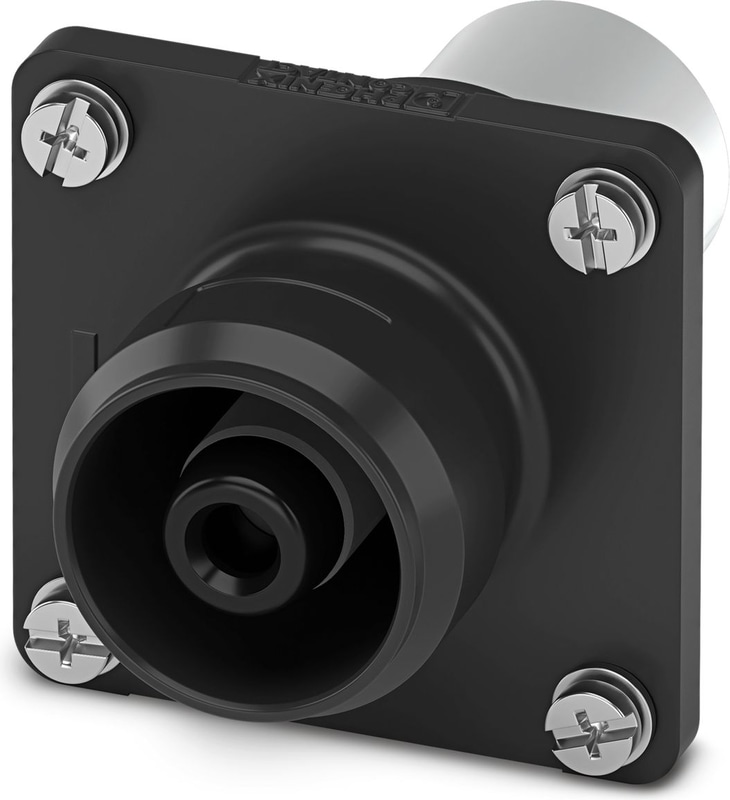

ES-FT-BPC-C 95-120 BK - Connector

Connector, Range of articles: BPC, housing material: PA, color: black, number of positions: 1, min. conductor cross section: 95 mm2, max. conductor cross section: 120 mm2, rated voltage: 1500, rated current: 350 A, Connection method: Crimp, Contact connection type: Pin

  • Patented design, with 3 proofs and one rotation
  • Safety lock
  • 360° free rotation and flexible wiring
  • Foolproof mechanism installed
  • Touch-proof
  • Mismatching and short circuit proof

Documents

Technical Specifications

Safety note

Safety note• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Safety note• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
Safety note• The products are suitable for applications in plant, controller, and electrical device engineering.
Safety note• Assembled products may not be manipulated or improperly opened.
Safety note• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
Safety note• When using the product in direct connection with third-party manufacturers, the user is responsible.
Safety note• For operating voltages > 50 V AC, conductive connector housings must be grounded
Safety note• Ensure that the protective or functional ground has been properly connected.
Safety note• Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product
Safety note• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
Safety note• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
Safety note• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Safety note• Operate the connector only when it is fully plugged in and interlocked.
Safety note• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
Safety note• Observe the minimum bending radius of the cable. Lay the cable without twisting it.

Product properties

Product familyBPC
Number of Positions1

Insulation characteristics

Degree of pollution2

Electrical properties

Rated voltage (III/2)1500 V DC
Nominal voltage ATD1500 (III/2.00)
Rated current350 A (with 120 mm² conductor cross-section, in accordance with IEC 61984)
Rated current300 A (with 95 mm² conductor cross-section, in accordance with IEC 61984)
Rated current350 A (with AWG 4/0, in accordance with UL 4128)
Contact resistance≤ 0.5 mΩ
Nominal voltage UN1500 V

Connection data

Connection MethodCrimp
Tightening torque1.1 ... 1.1 Nm

Material specifications

Colorblack
MaterialPolyamide (Housing)
MaterialCopper (Contact)
MaterialSilicon (Seal)
Flammability rating according to UL 94V0
Seal materialSilicon
Insulating materialPA
Housing MaterialPA
Contact MaterialCu/Cu alloy
Contact surface materialNi/Ag

Cable/line

Single wire, cross section95 mm² 120 mm²
Stripping length of the individual wire18 mm ±1 mm

Mechanical data

Insertion/withdrawal cycles100
Insertion force≤ 75 N

Ambient conditions

Degree of protection (when plugged in)IP65 (The panel is feed-through hole)
Degree of protection (when plugged in)IP65 (The panel is feed-through hole)
Degree of protection (not plugged in)IP20
Ambient Temperature (Operation)-40 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Altitude4000 m

Standards and Regulations

Standards/specificationsIEC 61984:2008
Standards/specificationsEN 61984:2008
Standards/specificationsUL 4128
Standards/specificationsPPP 51090A

Mounting

Assembly noteWe recommend to use the crimping dies and other crimping devices of Jiangsu Bozhiwang Automation Equipment Co., Ltd. for cable crimp connection; Address: No. 39 Kun Lun Road, Xin Bei District, Changzhou, Jiangsu Province, China, Email: bwgm2@wire-processor.com, die model: BZW-6F
