CHARX PS/3AC/920DC/87.5KW
Weight
63.6 kg

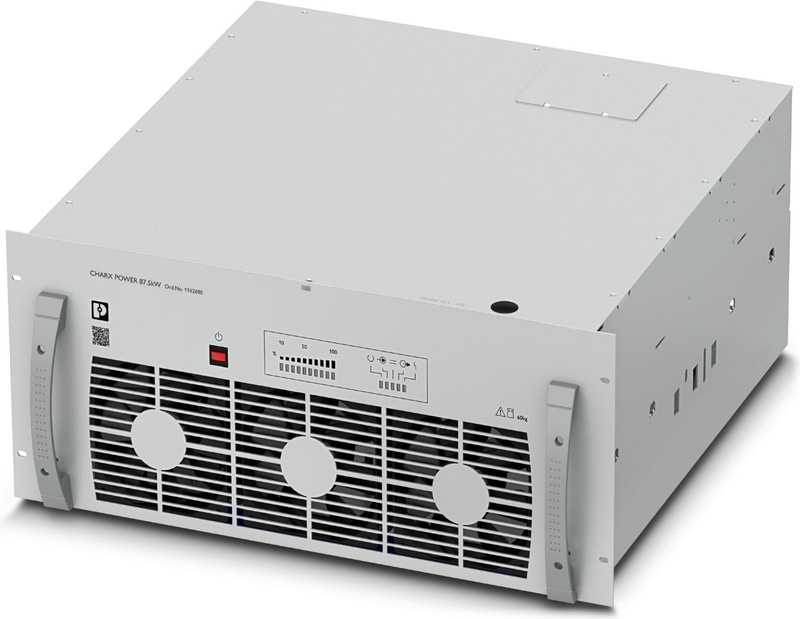

CHARX PS/3AC/920DC/87.5KW - DC power module
CHARX power basic, Fast charging module for setting up DC charging stations, Rack mounting, input: 3-phase, output: 200 V DC...920 V DC / 125 A. The corresponding system control cabinet CHARX PS-CAB/4x87.5KW (Item No. 1165442) is necessary for operating the DC power module
- Low installation costs with Plug and Play and efficient operation due to the high degree of efficiency
- Save space with the innovative design and high power density
- Fast repair due to hot swappable power modules
- Scalable power for each charging point with the flexible assembly of system cabinets and connection of power modules
- The operation of large charging parks in the megawatt range is made possible by connecting multiple system cabinets together
- Bi-directional charging for V2G applications and peak shaving
Documents
Technical Specifications
Digital
| Nominal Power Consumption | 90067 VA |
AC operation
| Input voltage range | 3x 400 V AC ±10 % |
| Frequency Range | 3x 50 Hz ... 60 Hz ±10 % |
| Input Current | 3x 130 A |
| Power factor (cos phi) | 0.99 |
| Total distortion (THDi) | < 3 % |
| Supply system configuration | TN-S, TN-C, TN-C-S, IT (PE) (MP and insulation monitoring) |
Output data
| Efficiency | max. 97 % |
| Output voltage range | 200 V DC ... 920 V DC ±1 % |
| Output Current | max. 125 A |
| Output current residual ripple | ≤ 1 % |
| Nominal power | 87.5 kW |
| Power dissipation | < 2650 W |
| Power dissipation standby | < 135 W |
| Derating | > 40 °C ... 50 °C (Derating 2.5%/K) |
| Parallel Operation | yes (Operational readiness) |
| Connection in parallel | yes, up to 2 control cabinets |
Energy storage
| Battery technology | Li-Ion |
Electrical properties
| Number of phases | 3 |
Product properties
| Product family | CHARX power basic |
| Hot PLUG connection | yes |
| Ventilation | yes |
Insulation characteristics
| Protection class | I |
| Pollution degree | 2 |
Item dimensions
| Width | 536 mm |
| Height | 222 mm |
| Depth | 600 mm |
Mounting
| Mounting Type | Rack mounting |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 50 °C (Derating > 40°C: 2.5%/K) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Maximum altitude | ≤ 2000 m (Derating > 1000 m: 10 %/1000 m) |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Noise Level | approx. 72 dB (at full load) |
Overvoltage category
| IEC 60664-1 | II |
Electric vehicle conductive charging system - Part 1: General requirements
| Standard designation | Electric vehicle conductive charging system - Part 1: General requirements |
| Standards/specifications | IEC 61851-1 |
UL data
| Overvoltage category | II |
