HV M10/2 NFF
Weight
0.268 kg
Series HV-M

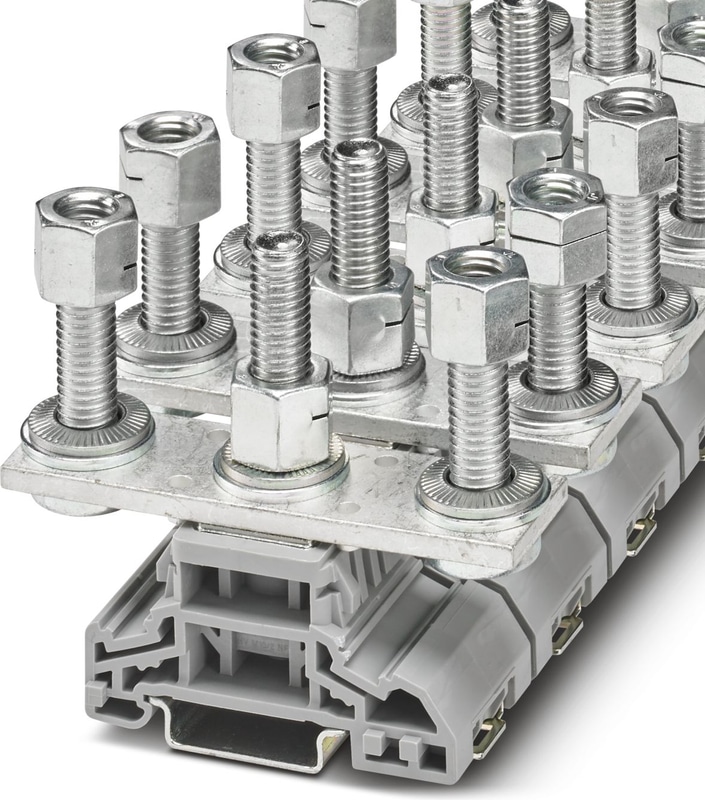

HV M10/2 NFF - High-current connector
High-current connector, nom. voltage: 1000 V, nominal current: 269 A, number of connections: 2, connection method: Bolt connection, Rated cross section: 120 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray
- HFR nut screw locking
- Conical washer CS
Documents
Technical Specifications
General
| Note | The rated insulation voltage applies to insulated cable lugs acc. DIN 46237:1970-07 and for uninsulated cable lugs acc. DIN 46234:1980-03 with shrink sleeve. |
| Note | The rated insulation voltage applies to insulated cable lugs acc. DIN 46237:1970-07 and for uninsulated cable lugs acc. DIN 46234:1980-03 with shrink sleeve. When using uninsulated cable lugs with shrink sleeve the min. required air clearances and creepage distances have to be ensured by the enduser. |
| Note | The rated insulation voltage applies to insulated cable lugs acc. to DIN 46237:1970-07 and for uninsulated cable lugs acc. to DIN 46234:1980-03 with path extension. |
Product properties
| Number of Connections | 2 |
| Number of rows | 1 |
| Potentials | 1 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 4.06 W |
Connection data
| Number of connections per level | 2 |
| Nominal cross section | 120 mm² |
| Stripping length | The stripping length depends on the specification provided by the cable lug manufacturer. |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal Current | 269 A |
| Maximum Load Current | 269 A |
| Nominal Voltage | 1000 V |
| Nominal cross section | 120 mm² |
| Connection in acc. with standard | NF F61-017 |
| Maximum total current | 101 A |
| Nominal Voltage | 1000 V |
| Nominal cross section | 120 mm² |
Cable lug connection DIN 46234:1980-03
| Connection in acc. with standard | DIN 46234:1980-03 |
| Cross section | 6 mm² ... 120 mm² |
| Cross section range AWG | 8 ... 250 kcmil (converted acc. to IEC) |
| Hole diameter | 10.5 mm |
| Width | 24 mm |
| Bolt length | 16 mm |
| Bolt diameter | 10 mm |
| Screw thread | M10 |
| Tightening torque | 30.00 Nm |
| Connection in acc. with standard | DIN 46235:1983-07 |
| Cross section | 16 mm² ... 95 mm² |
| Cross section range AWG | 4 ... 250 kcmil (converted acc. to IEC) |
| Hole diameter | 10.5 mm |
| Width | 32 mm |
| Bolt length | 16 mm |
| Bolt diameter | 10 mm |
| Screw thread | M10 |
| Tightening torque | 30.00 Nm |
| Connection in acc. with standard | DIN 46237:1970-07 |
| Cross section | ... 6 mm² |
| Cross section range AWG | ... 8 (converted acc. to IEC) |
| Hole diameter | 10.5 mm |
| Width | 18 mm |
| Bolt length | 16 mm |
| Bolt diameter | 10 mm |
| Screw thread | M10 |
| Tightening torque | 30.00 Nm |
| Connection in acc. with standard | NF F00-363:1995-12-01 |
| Cross section | ... 120 mm² |
| Additional text | The stripping length is based on the specifications of the cable lug manufacturer. |
| Cross section range AWG | (converted acc. to IEC) |
| Bolt diameter | 10 mm |
| Screw thread | M10 |
| Tightening torque | 30.00 Nm |
| Connection in acc. with standard | NF F00-363 |
| Cross section | 0.5 mm² ... 25 mm² |
| Additional text | Release list on request |
| Cross section range AWG | (converted acc. to IEC) |
Dimensions
| Width | 32 mm |
| Height | 90.5 mm |
| Depth | 74.6 mm |
| Depth on NS 35/7,5 | 75.3 mm |
| Depth on NS 35/15 | 82.8 mm |
| Bolt length | 42 mm |
Material specifications
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Surge voltage test
| Result | Test passed |
Temperature-rise test
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Result | Test passed |
| Short-time withstand current 120 mm² | 14.4 kA |
| Result | Test passed |
Power-frequency withstand voltage
| Test voltage setpoint | 2.2 kV |
| Result | Test passed |
Mechanical data
| Open side panel | No |
Mechanical strength
| Result | Test passed |
Attachment on the carrier
| Result | Test passed |
Test for conductor damage and slackening
| Rotation speed | 10 (+/- 2) rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 120 mm² /14 kg |
| Result | Test passed |
Needle-flame test
| Time of exposure | 30 s |
| Result | Test passed |
Oscillation/broadband noise
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
| Spectrum | Service life test category 2, bogie-mounted |
| Frequency | f1 = 5 Hz to f2 = 250 Hz |
| ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 3.12g |
| Test duration per axis | 5 h |
| Test directions | X-, Y- and Z-axis |
| Result | Test passed |
Shocks
| Pulse shape | Half-sine |
| Acceleration | 30g |
| Shock duration | 18 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
| Connection in acc. with standard | NF F61-017 |
Mounting
| Mounting Type | NS 35/7,5 |
| Mounting Type | NS 35/15 |
