Official DistributorBy ABB
SKU
MPN
3AXD50000285044
Weight
54.432 kg

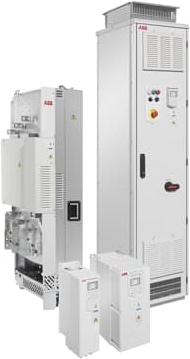

ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth® capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Technical Specifications
Dimensions
| Product Net Weight | 120 lb |
| Product Net Depth / Length | 14.58 in |
| Product Net Height | 34.67 in |
| Product Net Width | 11.18 in |
| Package Level 1 Units | 1 carton |
Technical
| Number of phases | 3 |
| Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 |
| Frequency (f) | 50/60 Hz |
| Frame Size | R7 |
| Input Voltage (Uin) | 500 … 600 V |
| Mounting Type | Wall-mounted |
Technical UL
| Output Current, Light-Overload Use (UL) | 99 A |
| Output Power, Light-Overload Use (UL) | 100 Hp |
Why Proax for ABB ACH580-01-099A-6?
Proax is an authorized distributor of ABB ACH580-01-099A-6 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | ACH58001099A6 |
| Pack Size | 1 |
