1619278
Official DistributorSKU
PHX1619278
MPN
K-17 - OE/5,0-E01/M23 F8
Weight
0.711 kg
Series K

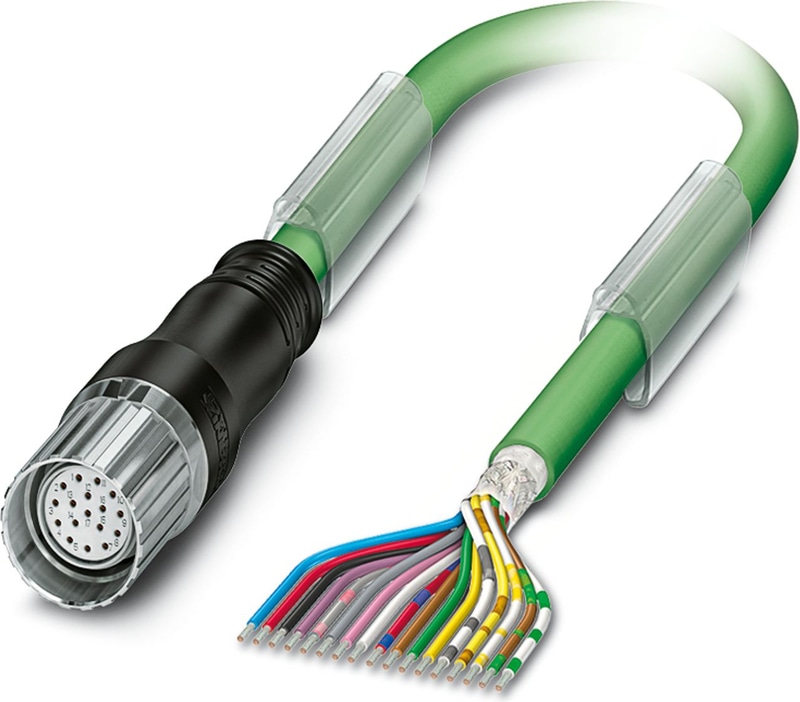

K-17 - OE/5,0-E01/M23 F8 - Cable plug in molded plastic
Cable plug in molded plastic, Straight, plastic molded, cable length: 5 m, shielded: yes, color of outer sheath: green
- Our standard: robust halogen-free PUR cable
- Simple and safe: 100% electrically tested and assembled ready for use
- Designs with preassembled cables on one or both sides
- High flexibility: customer-specific assemblies and cable lengths can be supplied
Documents
Technical Specifications
Connector specifications
| Type | Straight, plastic molded |
Cable specifications
| Cable Type | SSLC11Y |
| Shielded | yes |
| Cable structure | 3 x 2 x 0.14 mm² + 2 x 0.5 mm² + 4 x 0.14 mm² + 4 x 0.22 mm² |
| Cable Structure (AWG) | 26 AWG/3pr + 20 AWG/2c + 26 AWG/4c + 24 AWG/4c |
| External Cable Diameter | 9.40 mm |
| Outer sheath, material | TPU |
| Material wire insulation | TPU |
| External sheath, color | green |
| Nominal voltage, cable | 30 V |
| Test voltage | 0.5 kV |
| Rated current | 9 A |
| Smallest bending radius, fixed installation | 38 mm |
| Smallest bending radius, movable installation | 94 mm |
| Ambient temperature (operation) for fixed installation | -30 °C ... 80 °C |
| Ambient temperature (operation) for flexible installation | -30 °C ... 60 °C |
Electrical properties
| Nominal current IN | 9 A |
Cable/line
| Cable Length | 5 m |
