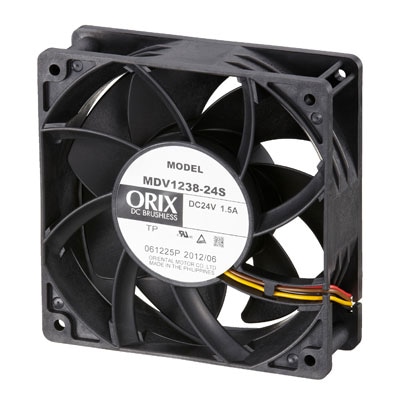

Series MD Series DC Axial Fans
4.72 in. (120 mm) Variable Speed DC Axial Fan
These DC Axial fans easily allow for changes in fan speed. They employ a PWM control method by which speed is changed with a PWM control circuit (see accessory - FSC-24 Speed Controller).Documents
Technical Specifications
| Fan Type | Axial Fan |
| Frame Size | 4.72 in |
| Thickness | 1.5 in. |
| Power Supply | 24 VDC |
| Current | 1.5 A [100% PWM Duty] |
| Type | V Type (Variable Speed) |
| Function | Pulse Sensor |
| Connection Type | Lead Wire |
| Speed (r/min) | 6400 [100% PWM Duty] |
| Max. Air Flow | 224 CFM [100% PWM Duty] |
| Max. Static Pressure | 1.45 inH2O [100% PWM Duty] |
| Noise Level | 64 dB (A) [100% PWM Duty] |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | TUV |
| CE Marking | EMC Directives |
| Insulation resistance | 10 MΩ or more when 500 VDC is applied between the windings and the frame under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 500 VAC at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after continuous operation under normal ambient temperature and humidity |
| Overheat Protection | Equipped with a built-in burnout protection circuit |
| Ambient temperature range | -4ºF ~ 158ºF (-20ºC ~ 70ºC) |
| Setting | Max Speed - PWM Duty 100% or control lead wire open.When the control lead wire is open, the fan speed is the same as the one at a PWM duty cycle of 100%. |
| Alarm Type | Pulse Sensor |
| Output Pulse | Two pulses per fan revolution |
| Output Mode | Open-collector output |
| Maximum Rating | Maximum applied voltage: 30 VDC max.Maximum current Ic: 5 mA max. |
