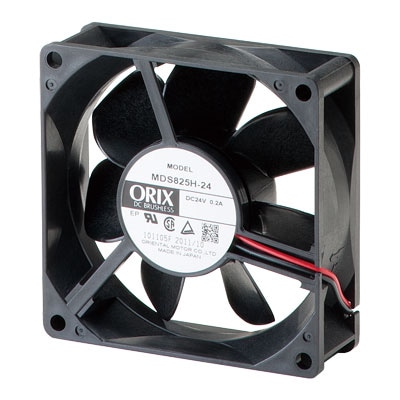

Cooling Fan
MDS825H-24
Official DistributorSKU
ORIMDS825H24
Series MD Series DC Axial Fans
3.15 in. (80 mm) DC Axial Fan
Axial fans use a propeller to create a flow of air the direction of the axis of rotation. Because they create a large airflow, axial fans are optimal for a wide variety of cooling and other airflow needs.Documents
Technical Specifications
| Fan Type | Axial Fan |
| Frame Size | 3.15 in |
| Thickness | 0.98 in. |
| Power Supply | 24 VDC |
| Current | 0.2 A |
| Type | S Type (Standard) |
| Function | None |
| Connection Type | Lead Wire |
| Fan Speed Type | High Speed |
| Speed (r/min) | 4500 |
| Max. Air Flow | 53 CFM |
| Max. Static Pressure | 0.322 inH2O |
| Noise Level | 40 db (A) |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | TUV |
| CE Marking | EMC Directives |
| Insulation resistance | 10 MΩ or more when 500 VDC is applied between the windings and the frame under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 500 VAC at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after continuous operation under normal ambient temperature and humidity |
| Overheat Protection | Equipped with a built-in burnout protection circuit |
| Ambient temperature range | -4ºF ~ 140ºF (-20ºC ~ 60ºC) |
Why Proax for Oriental Motor MDS825H-24?
Proax is the authorized distributor of Oriental Motor MDS825H-24. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MDS825H24 |
| Pack Size | 1 |
