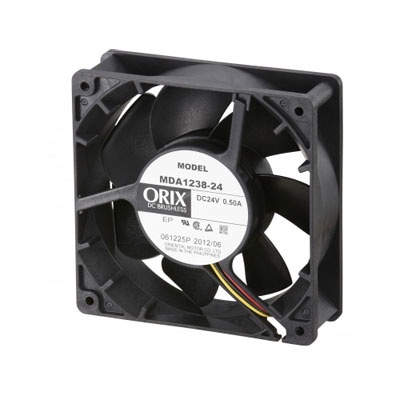

Cooling Fan
MDA1238-24
Official DistributorSKU
ORIMDA123824
Series MD Series DC Axial Fans
4.72 in. (120 mm) DC Axial Fan with Alarm
The MD Series A Type features a built-in alarm circuit that the host controller can recognize if the fan speed drops. This is important for noticing quick drops in the cooling capacity of the fan caused by a service life of the fan or by the ingress of a foreign objects.- Alarm Type
Documents
Technical Specifications
| Fan Type | Axial Fan |
| Frame Size | 4.72 in |
| Thickness | 1.5 in. |
| Power Supply | 24 VDC |
| Current | 0.50 |
| Type | A Type (with Alarm) |
| Function | Low Speed Alarm - Electronic |
| Connection Type | Lead Wire |
| Speed (r/min) | 3600 |
| Max. Air Flow | 137 CFM |
| Max. Static Pressure | 0.542 inH2O |
| Noise Level | 49 db (A) |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | TUV |
| Insulation resistance | 10 MΩ or more when 500 VDC is applied between the windings and the frame under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 500 VAC at 50 Hz or 60 Hz applied between the windings and the frame for 1 minute after continuous operation under normal ambient temperature and humidity |
| Overheat Protection | Equipped with a built-in burnout protection circuit |
| Ambient temperature range | -4ºF ~ 158ºF (-20ºC ~ 70ºC) |
| Alarm Type | Electronic |
| Alarm Activation Speed | 2100 ± 400 r/min |
| Output Mode | Open-collector output |
| Output Condition | Normal operation: L level (Internal transistor ON)Alarm output: H level (Internal transistor OFF) |
| Maximum Rating | Maximum Applied Voltage: 30 VDC max.Maximum Inflow Current: 15 mA max. |
| Delay Function | Built-In Starting Delay Time: 10 sec. max. (The alarm function starts monitoring within 10 sec. after the power is turned on.) |
Why Proax for Oriental Motor MDA1238-24?
Proax is the authorized distributor of Oriental Motor MDA1238-24. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MDA123824 |
| Pack Size | 1 |
