Cooling Fan
Official DistributorSKU

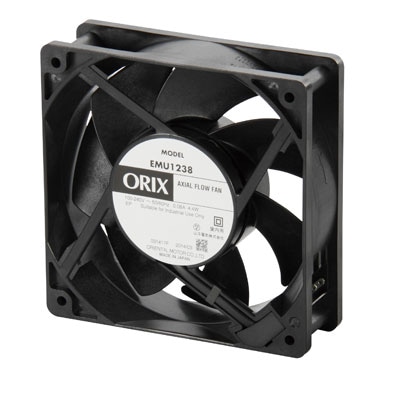

Axial Flow Fan
These AC Axial flow fans offer lower power consumption by utilizing a brushless motor. A wide voltage range can be used, single-phase 100-240V (50 / 60Hz) for the corresponding and the same performance characteristics are obtained regardless of the frequency used.- Power cord required (not provided)
Technical Specifications
| Fan Type | Axial Flow |
| Frame Size | 4.72 in |
| Thickness | 1.5 in. |
| Power Supply | Single-Phase 100 ~ 240 VAC |
| Frequency | 50 Hz |
| Current | 0.08 A |
| Function | None |
| Connection Type | Plug |
| Speed (r/min) | 3250 |
| Max. Air Flow | 106 CFM |
| Max. Static Pressure | 0.337 inH2O |
| Noise Level | 42 db (A) |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
Why Proax for Oriental Motor EMU1238?
Proax is the authorized distributor of Oriental Motor EMU1238. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
